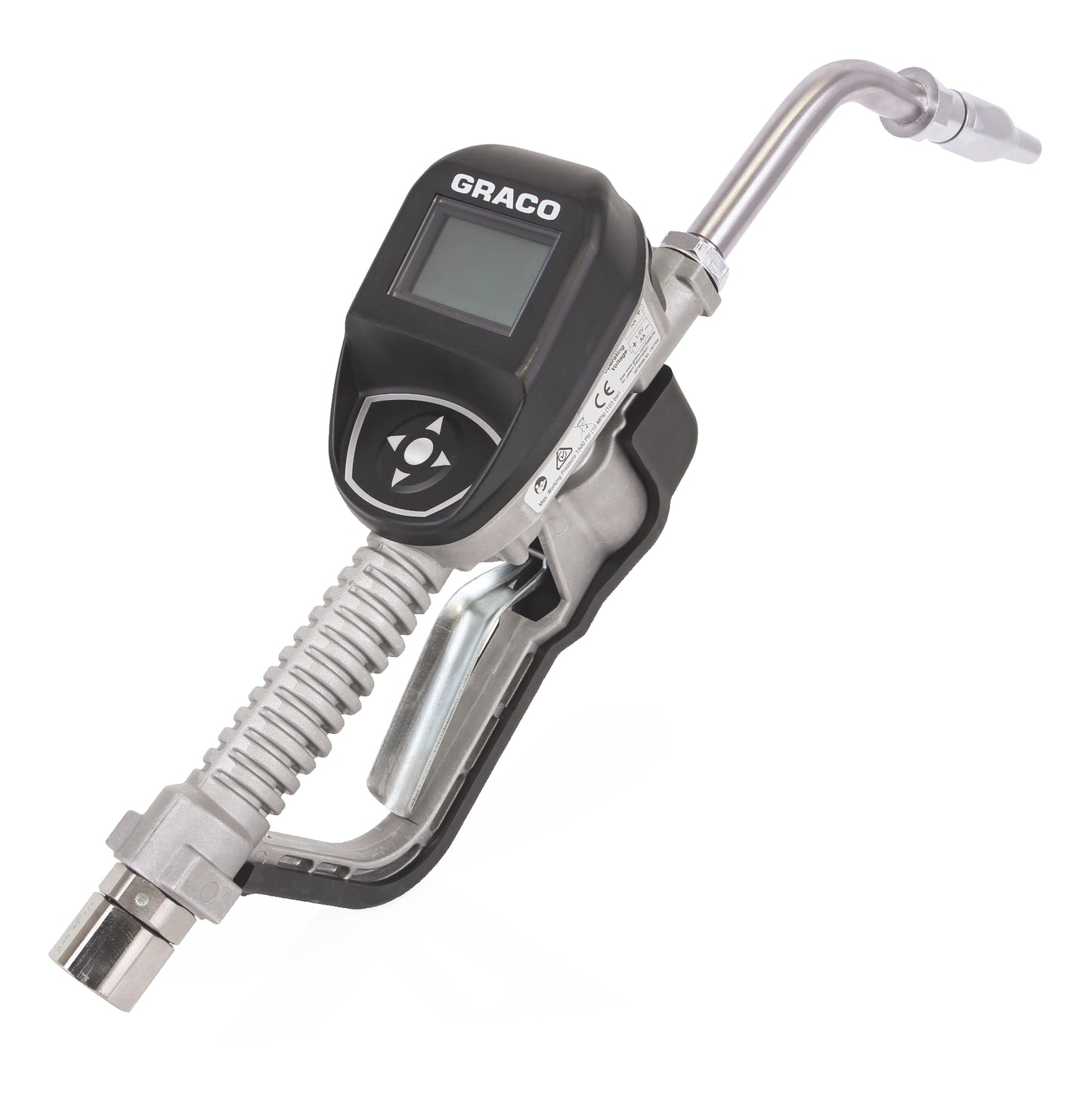

Graco 25M404 SDM8 1/2" NPT Rigid Extension, Electronic Manual Oil Meter

Graco 25M404 SDM8 1/2" NPT Rigid Extension, Electronic Manual Oil Meter

$962.00 USD
$1,088.00 USD $962.00 USD
Sale Sold out

Special Order 3-5 Days for Drop Ship
View Product Information View full details

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

  • Large, Intuitive Display—high-contrast display for low and bright light conditions

  • Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time

  • Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue





  • Reliable—time-tested Graco engineering

  • Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications

  • Long battery life—uses 4 AA easy-to-replace batteries

Division    LED
Family Code    FAMMSD
Country of Origin    US
Unit of Measure    EA
Height    7 IN  |  17.780 CM
Length    16 IN  |  40.640 CM
Width    5.5 IN  |  13.970 CM
Volume    .356 FT3  |  0.010 M3
Shipping Weight    6.2 LBS  |  2.812 KG
HTS Code (CA)    8481800081
HTS Code (US)    8481809020
Technical Specifications
Dispense Type    Manual
Display Type    Electronic
Extension Type    Rigid
Fluid Inlet Thread Gender    Female
Fluid Outlet Thread Gender    Female
Includes    Nozzle, Rigid Extension
Inlet Size (cm)    1.27
Inlet Size (in)    1/2
Inlet Size (mm)    12.7
Maximum Flow Rate (L/min)    30
Maximum Operating Temperature (°C)    70
Maximum Operating Temperature (°F)    158
Maximum Recorded Dispense    9999
Maximum Storage Temperature (°F)    158
Maximum Storage Temperature (°C)    70
Maximum Working Pressure (psi)    1500
Maximum Working Pressure (kPa)    10340
Maximum Working Pressure (bar)    103.4
Meter Accuracy (%)    ±0.5
Overall Height (cm)    14.6
Overall Height (in)    5.75
Overall Height (mm)    146
Overall Length (cm)    33
Overall Length (in)    13
Overall Length (mm)    330
Overall Width (cm)    9.5
Overall Width (in)    3.75
Overall Width (mm)    95
Meter Technology    Oval Gear
Metering Gun Weight (lb)    5.3
Metering Gun Weight (kg)    2.4
Minimum Flow Rate (GPM)    0.25
Minimum Flow Rate (L/min)    0.9
Warranty    5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
Trigger Protection Type    Guard
Trigger Lock    Non-Locking
Minimum Operating Temperature (°F)    4
Minimum Operating Temperature (°C)    -16
Valve Type    Metered
Maximum Working Pressure (MPa)    10.3
Model    SDM8
