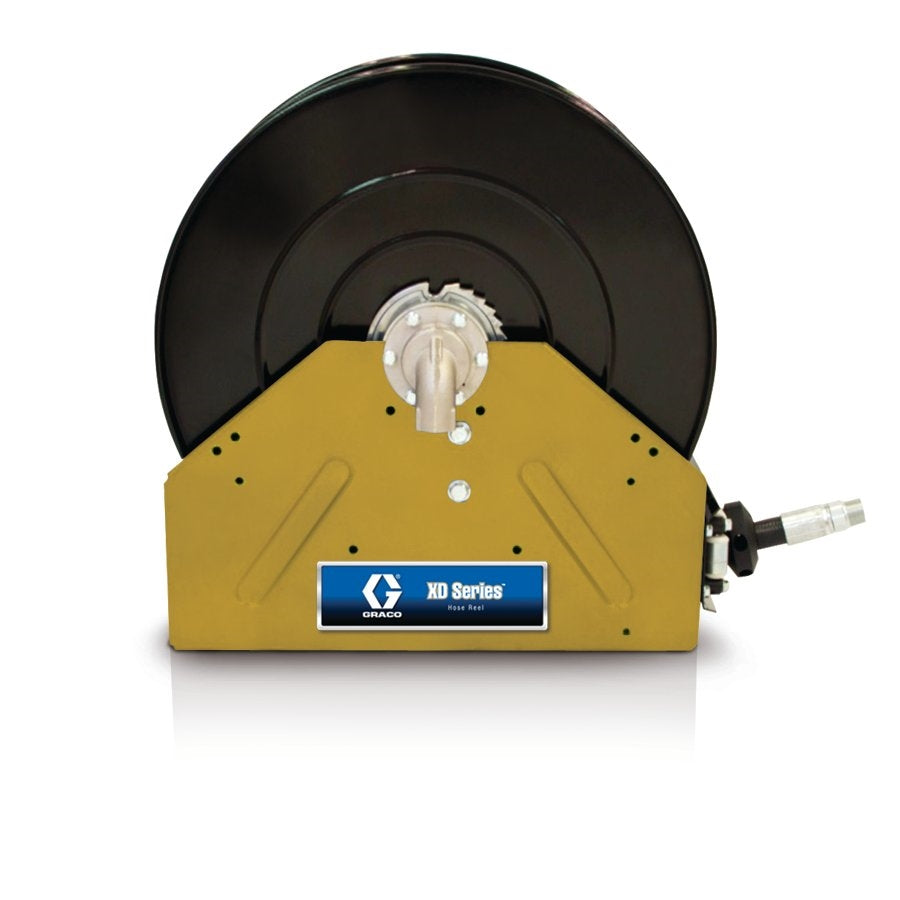

Graco’s XD40 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
Division LED Family Code FAMXD4 Country of Origin US Unit of Measure EA Height 33.6 IN | 85.344 CM Length 19.2 IN | 48.768 CM Width 31.2 IN | 79.248 CM Volume 11.648 FT3 | 0.330 M3 Shipping Weight 190 LBS | 86.183 KG HTS Code (CA) 8479899090 HTS Code (US) 8479899560 Technical Specifications Dry Weight (lb) 125 Hose Inside Diameter (mm) 25.4 Inlet Size (in) 1 Inlet Size (mm) 25.4 Maximum Working Pressure (psi) 250 Outlet Size (in) 1 Outlet Size (mm) 25.4 Overall Height (in) 26.13 Overall Height (mm) 664 Overall Length (in) 26.4 Overall Length (mm) 671 Overall Width (in) 16.54 Overall Width (mm) 420 Series 40 Frame Type Box Frame Reel Thread Type NPT Recommended Fluid Type Diesel Fuel Hose Reel Type Reel with Hose Model XD includes hose Yes
