PT Coupling 1/2" Basic Standard Series Cam and Groove Fittings - Aluminum

1/2" Camlock, Basic Standard Series Cam and Groove Fittings

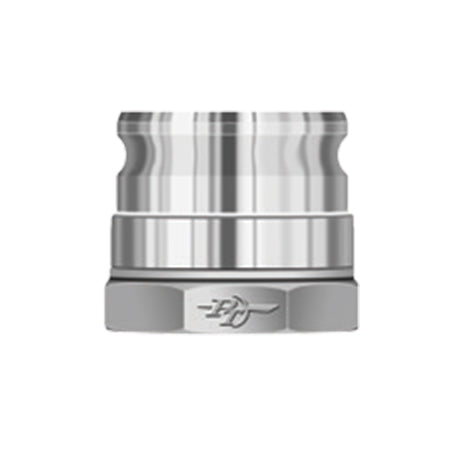

A-Adapter X Female NPT Thread

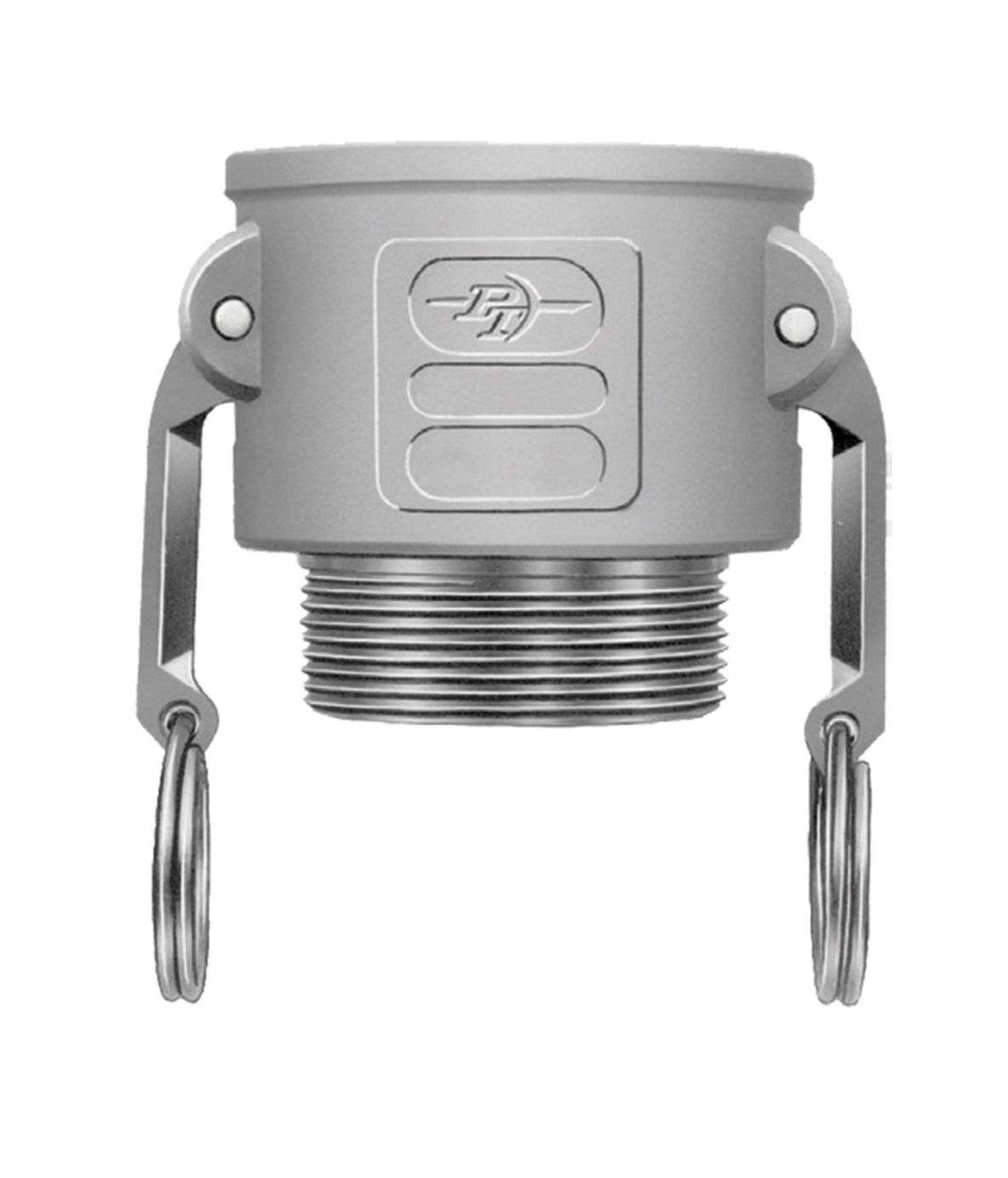

B-Coupler X Male NPT Thread

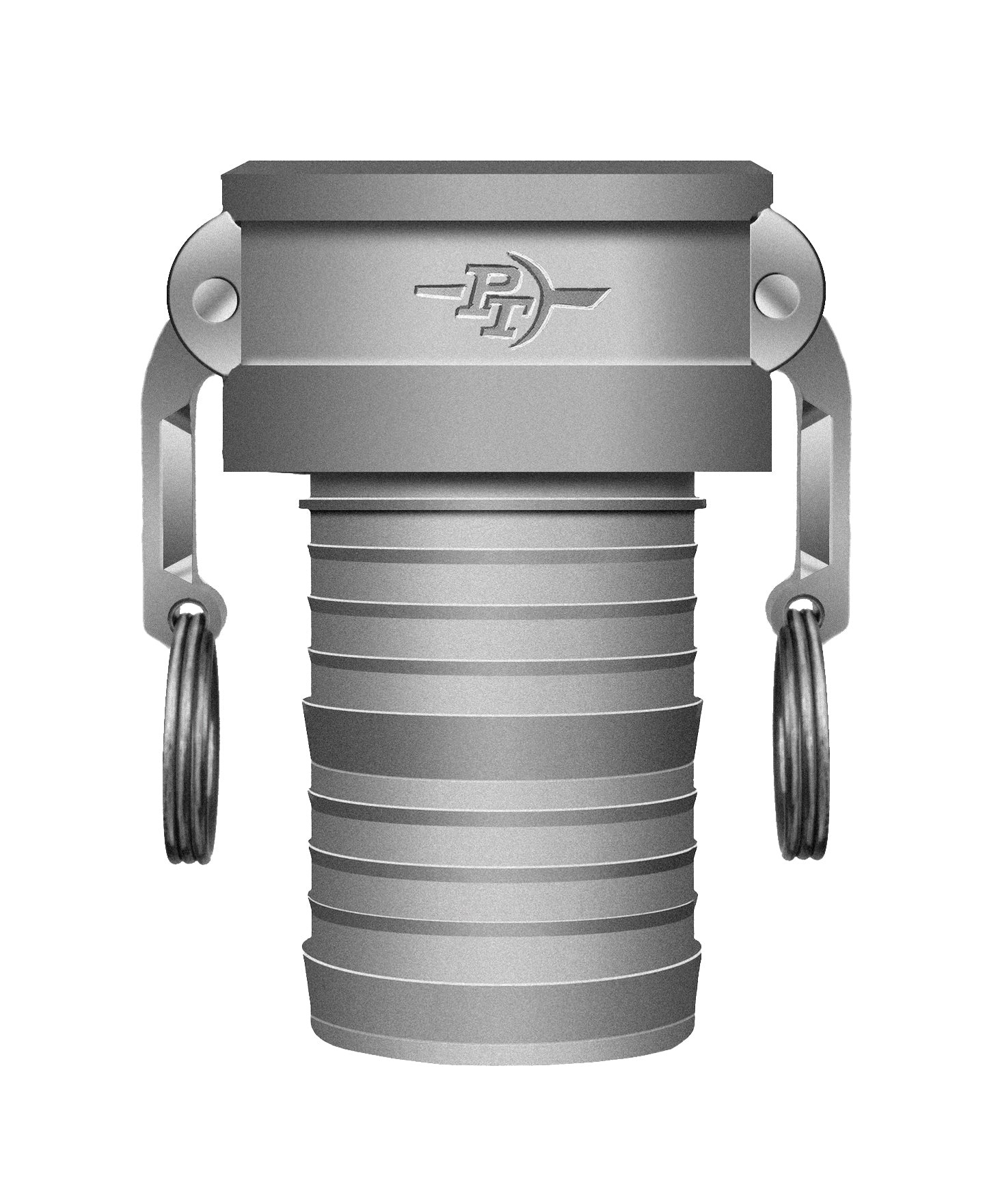

C-Coupler X Hose Shank

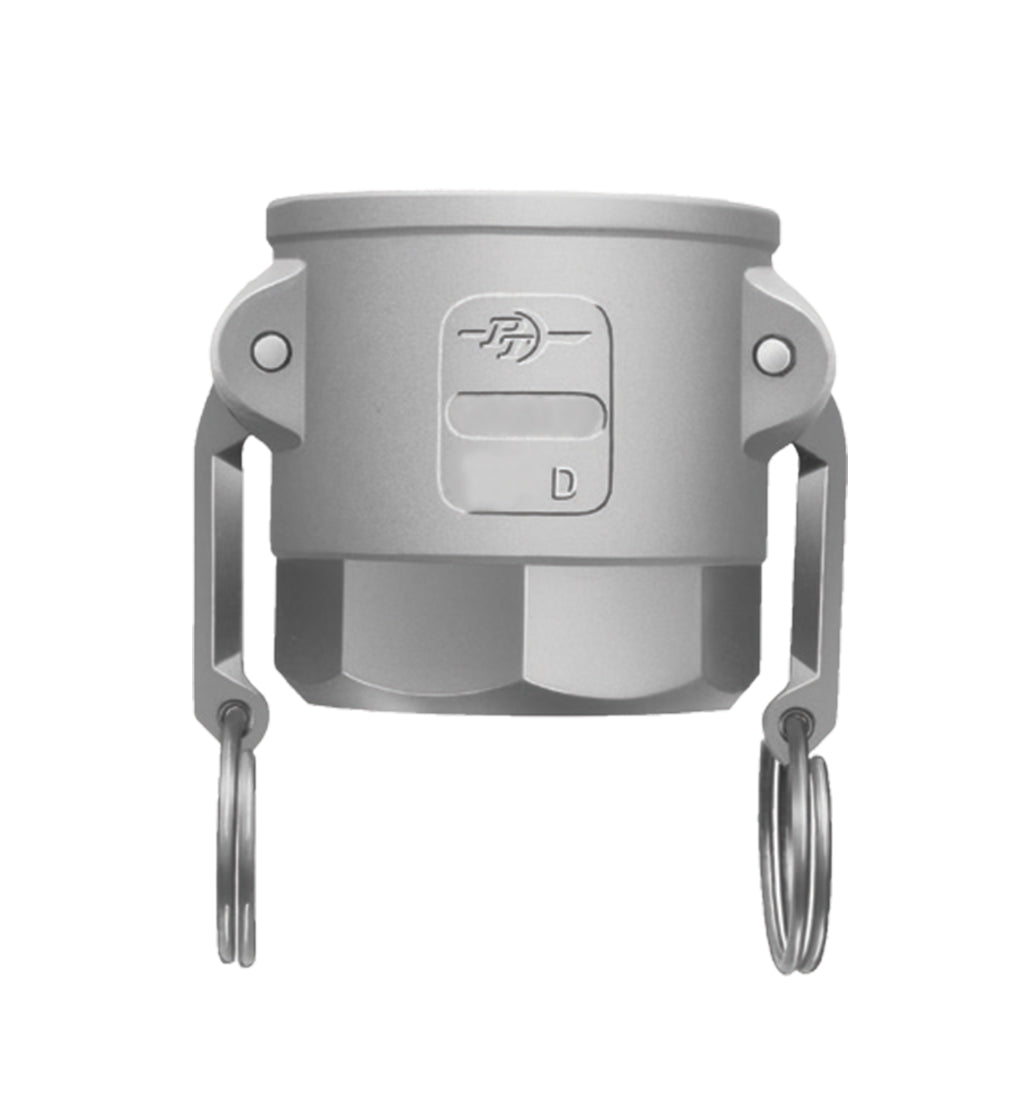

D-Coupler X Female Thread

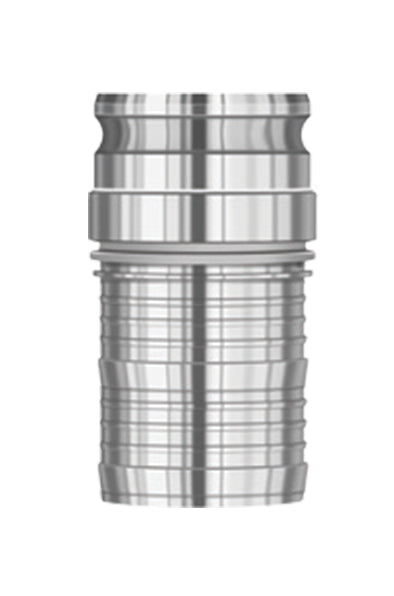

E-Adapter X Hose Shank

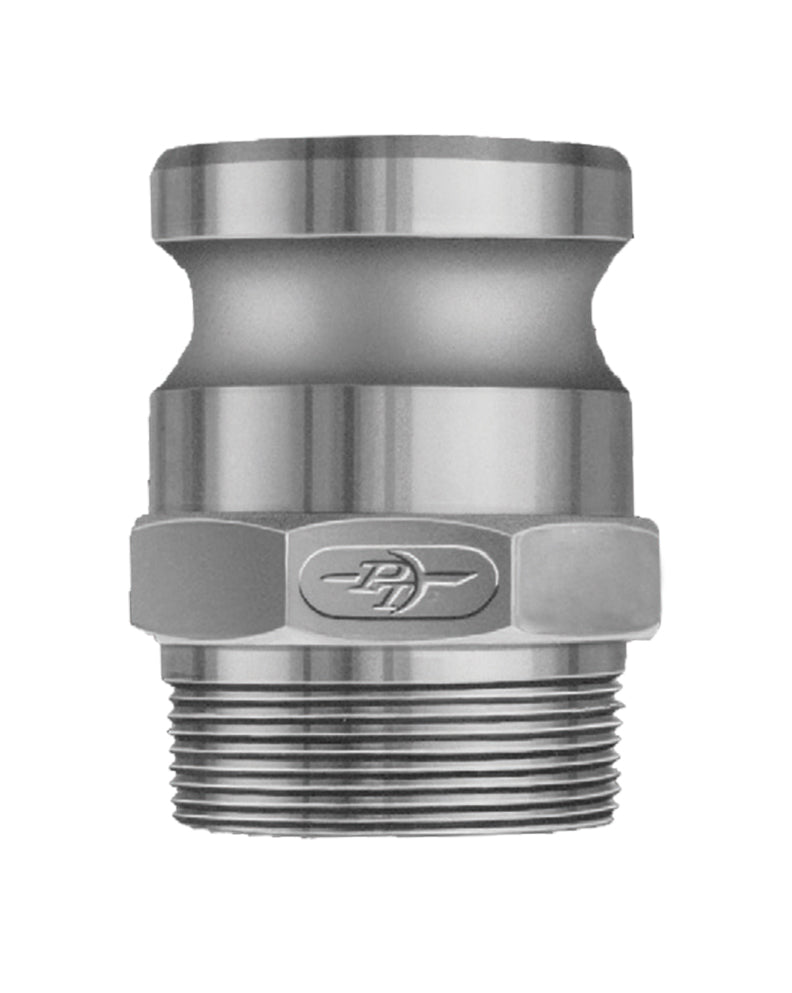

F-Adapter X Male Thread

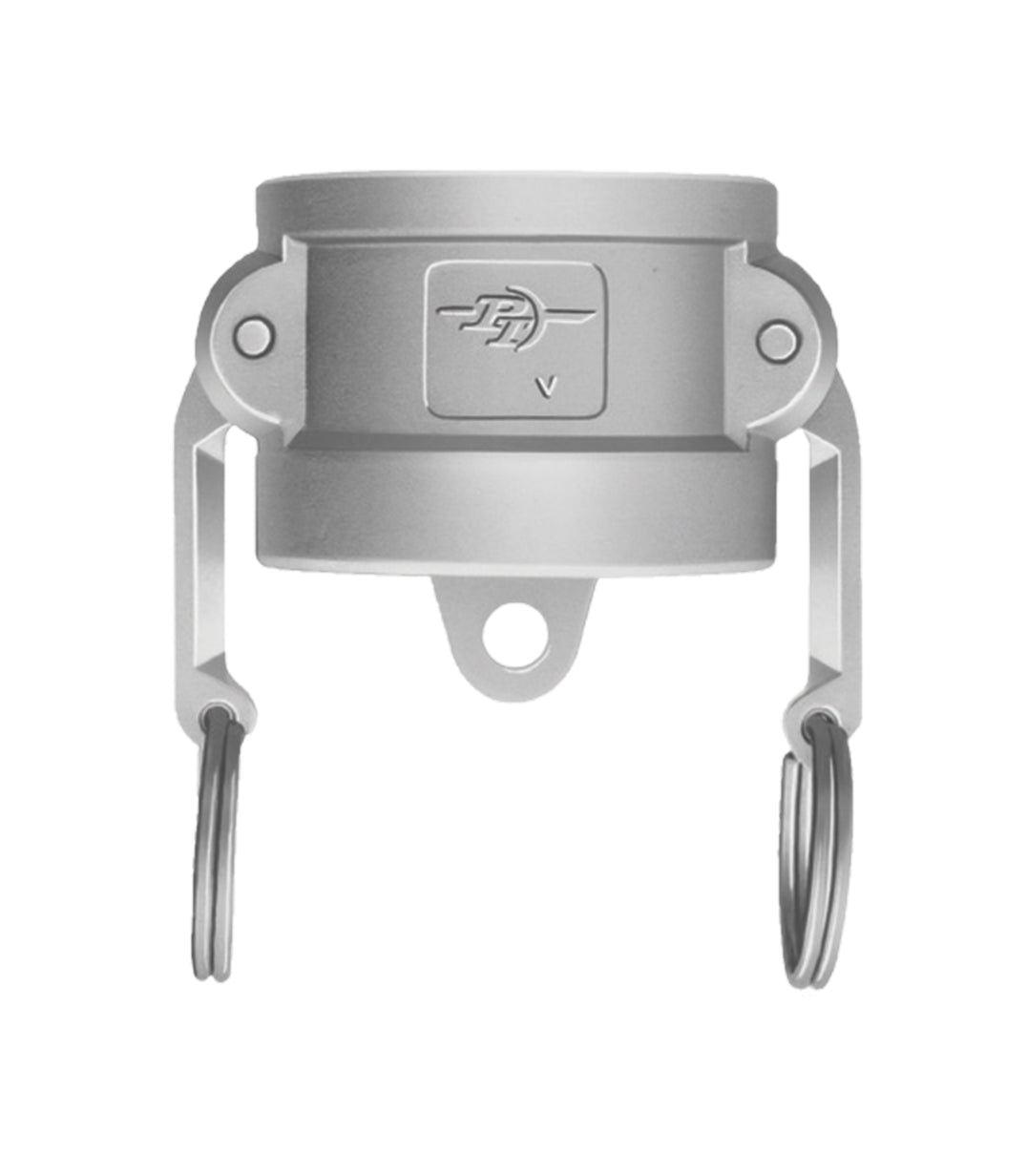

V-Dust Cap

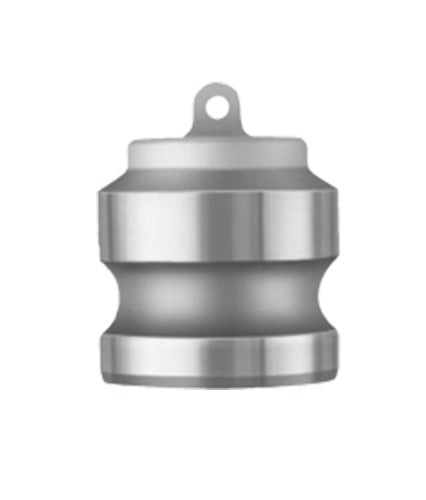

W-Dust Plug

HBS cam arms are made of 300 series Stainless Steel.
All Stainless Steel cam and groove fittings are 316 Stainless Steel with 300 series Stainless Steel components, unless otherwise noted.

Made in the U.S.A.

 CAM & GROOVE HOSE COUPLINGS
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
 PT COUPLING DOD COMMERCIAL ITEM DESCRIPTION
All PT Quick Connect/Disconnect Couplings in every metal and size, 1/2” x 3/4” through 4” and 6” are manufactured to interchange with products produced to DOD Commercial Item Description A-A-59326D. All “RFQ’s” identified as Government will be quoted with the required components and castings to meet the A-A-59326D DOD Commercial Item Description. Cam and Groove fittings are interchangeable among manufacturers, with the exception of 1/2”, 5”, 8” - 12” which may not be interchangeable. Quality is controlled in every phase of manufacture as is required for compliance to A-A-59326D. PT Coupling’s quality management system is certified and conforms to the requirements of ISO9001.
