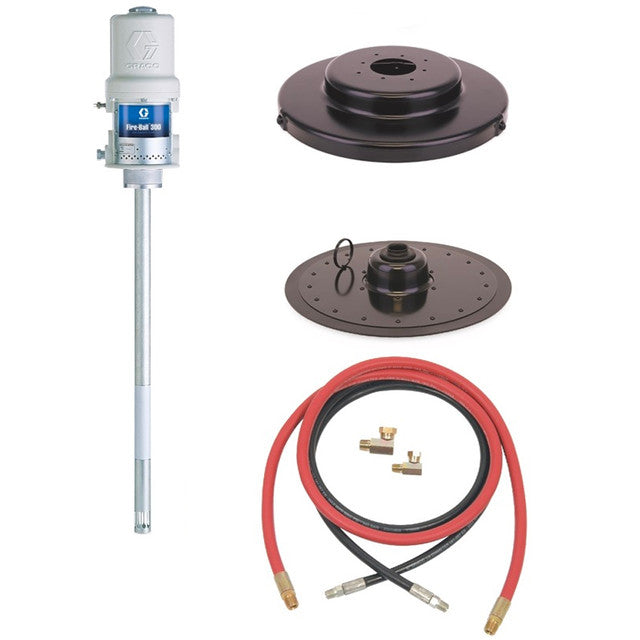

Graco 225014 Package Fire-Ball 300 50:1 120lb Grease (Consists of 239887, 24F902, 24R350, 222072)

Graco 225014 Package Fire-Ball 300 50:1 120lb Grease (Consists of 239887, 24F902, 24R350, 222072)

$1,930.00 USD
$2,100.00 USD $1,930.00 USD
Sale Sold out

Special Order 10-15 Days for Drop Ship
View Product Information View full details

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

Install the Fire-Ball 300 50:1 in grease dispense applications.

  • Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Division    LED
Family Code    FAMPPF
Country of Origin    US
Unit of Measure    EA
HTS Code (CA)    8413199090
HTS Code (US)    8413190000
Technical Specifications
Fluid Inlet Thread Gender    Female
Fluid Outlet Size (cm)    0.635
Fluid Outlet Size (mm)    6.35
Fluid Outlet Thread Gender    Female
Includes    Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate
Maximum Working Pressure (bar)    350
Maximum Working Pressure (kg/cm²)    590.6
Maximum Working Pressure (kPa)    35000
Maximum Working Pressure (psi)    5000
Series    300
Air Inlet Size (in)    3/8
Air Inlet Thread Gender    Female
Fluid Inlet Type    Slotted
Maximum Air Working Pressure (psi)    140
Pump Weight (lb)    22
Maximum Working Pressure (MPa)    35
Model    Fire-Ball
Container Size (lb)    120
Compatible Drum Size (gal)    N/A
