OPW FC 241TPS-0492 3/4"F x 3/4"M (NPT) Two Plane Swivel for E85

OPW FC 241TPS-0492 3/4"F x 3/4"M (NPT) Two Plane Swivel for E85

$88.00 USD
$120.00 USD $88.00 USD
Sale Sold out

View Product Information View full details

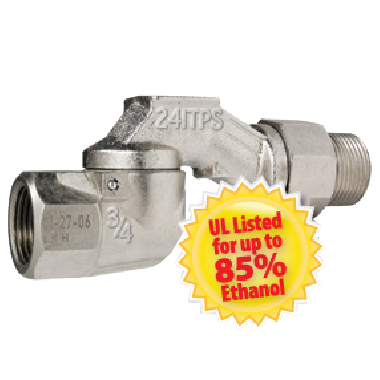

The OPW 241TPS-0492 is designed and rigorously tested for use in today alternative fuels. The first swivel of its kind to be UL listed for use in Ethanol blended fuels up to 85%. Swivels are installed in between the nozzle and the hose to provide flexibility in the system to reduce customer strain, position the nozzle properly, and reduce premature hose wear.

Features

  • UL Listed for up to 85% ethanol.
  • Allows for easy nozzle positioning in fill pipes Utilizing two planes of rotation.
  • Reduces premature hose wear Utilizing two planes of rotation.
  • Added protection vs. thermal and chemical degradation Dual Seals

Design working pressure

  • 50 PSI (3.45 bar) maximum pressure.

Materials

  • Body: aluminum w/ nickel plating
  • Outlet Adaptor: zinc w/ nickel plating
  • Inlet Adaptor: zinc w/ nickel plating
  • Seals: Buna-N, Viton
  • Bearing: nylon
  • Weight: 0.65 lbs., 0.30 kg

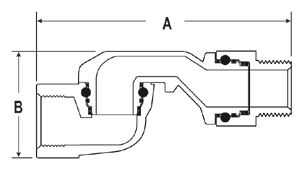

  • Length A: 4-7/8" Depth B: 2-3/16"
