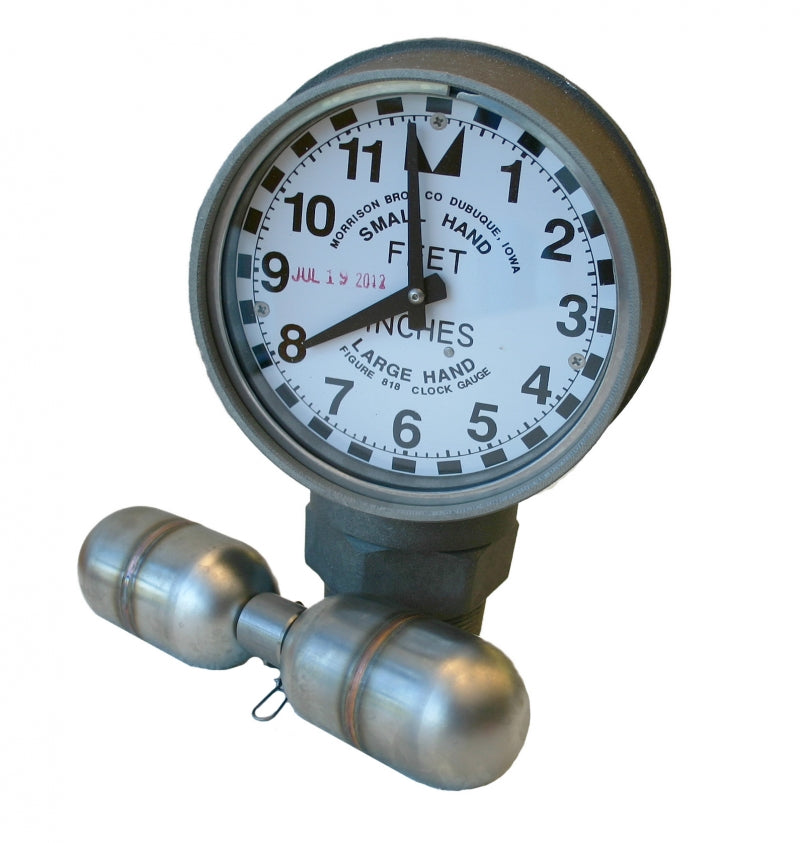

Morrison Bros 818F-0100 AGEVR 2" Female NPT Clock Gauge W/Standard Float, CARB EVR Approved

The Morrison clock gauge displays the liquid level reading of product stored in an aboveground tank. Measures the liquid level up to a maximum of 12 feet in height.

Standard Features
Gauge face displays level reading in feet and inches. The hour hand (short hand) displays the number of feet and the minute hand (long hand) accurately displays the number of inches
Easy to install and calibrate in a 2″ tank top opening
Accurate to 1/8 of an inch
Easily read from 30 feet away
Vapor tight construction
Vapor tight fog free design
Gauge rotates 360° making it easy for the face to be read from the desired orientation
Visual indicators for high level (red) and low level (green) are applied to the dial face cover
Standard float fits through a 2″ schedule 40 pipe nipple; drop tube float fits through schedule 40 and schedule 80 pipe nipple
Compatible with 2″ Morrison 419 drop tube
Optional drop tube float when used in conjunction with a drop tube, reduces float entanglement when turbulent conditions are present

Construction Details

818 & 818F

Body: Aluminum
Float: Stainless steel
Cable: Stainless steel
