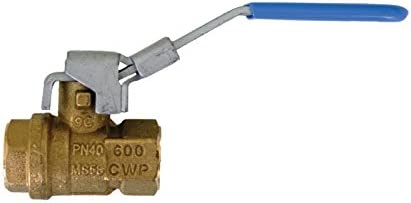

Morrison Bros 691B-0500 1V 1"npt Full Port Locking Ball Valve

Ball valves are used throughout fuel piping systems where a shut off is required or desired.

Standard Features
Quarter turn operation
Full port for maximum flow and minimum pressure drop
Can be operated in partial open position for flow control
Double seal allows the valve to be operated in both directions
Blowout proof stem
600 PSIG non-shock cold working pressure rating for 1/4″ to 2″ size
Can be used for air service
691B is lockable with a padlock

Construction Details

• Body: Forged brass
• Ball: Hard chrome plated
• Seal: PTFE
