Double disc design provides positive shut-off when in the closed position 200 PSI WOG cold non-shock Female NPT threaded connections Valve can be left partially open to control flow rate

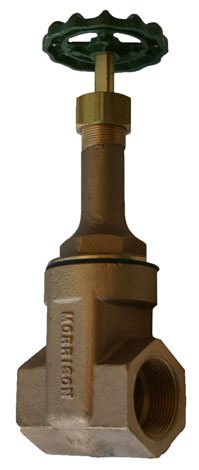

Rising stem gate vales are used for manual flow control in petro-chemical liquid handling systems and bulk plants.
NOTE:Fig. 235/B series is not equipped with expansion relief capability. If expansion relief is needed, specify Fig. 535/B.
Standard Features
Double disc design provides positive shut-off when in the closed position 200 PSI WOG cold non-shock Female NPT threaded connections Valve can be left partially open to control flow rate
Construction Details
Body, bonnet, stem, discs: Brass
Packing: PTFE impregnated fiber, PTFE
Hand wheel: Aluminum, powder coated black
Gasket: Nitrile composite, PTFE
