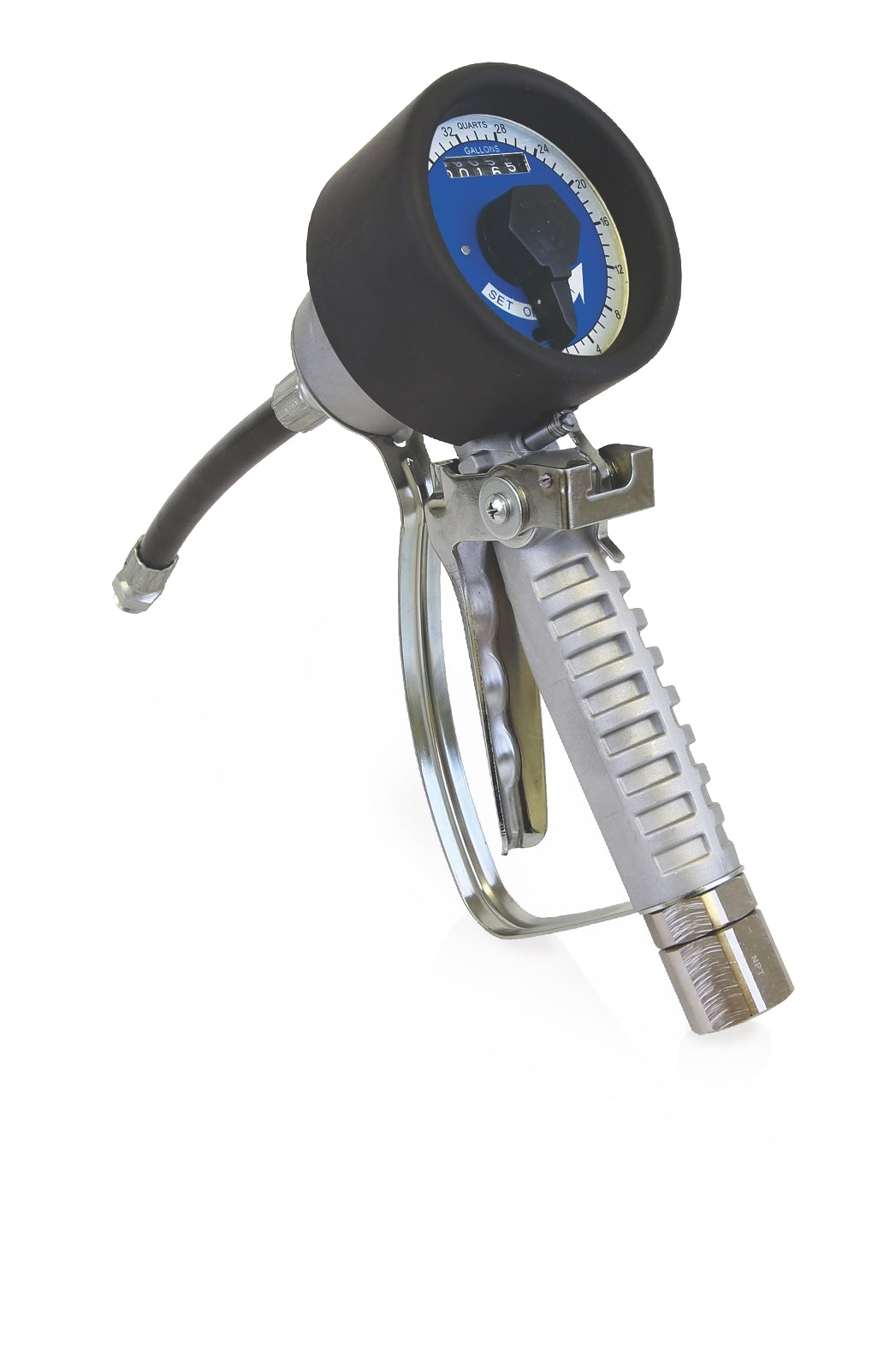

Graco 24Z126 60 Quart Preset Meter - Includes Nozzle/Extension Kit - Flexible Extension - NPT

Graco 24Z126 60 Quart Preset Meter - Includes Nozzle/Extension Kit - Flexible Extension - NPT

$827.00 USD
$898.00 USD $827.00 USD
Sale Sold out

Special Order 3-5 Days for Drop Ship
View Product Information View full details

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).



Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.

  • Preset meter automatically shuts-off flow when preset quantity has been dispensed
  • Impact-resistant shroud resists against scratches and protects knob and dial from damage
  • Dial and face design made simple, easy to read and set
  • Durable aluminum cast housing is balanced and lightweight for a comfortable grip
  • Built-in totalizer to manage material usage
  • Inlet 1/2 in. NPT with swivel
  • Measures fluid in quarts
  • Features flexible extension with oil nozzle

Division    LED
Family Code    FAMMMN
Country of Origin    CN
Unit of Measure    EA
Height    5 IN  |  12.700 CM
Length    14 IN  |  35.560 CM
Width    9.25 IN  |  23.495 CM
Volume    .375 FT3  |  0.011 M3
Shipping Weight    5 LBS  |  2.268 KG
HTS Code (US)    9026104000
HTS Code (CA)    9026100099
Technical Specifications
Dispense Type    Preset
Display Type    Mechanical
Extension Type    Flexible
Includes    Bare Meter, Nozzle Kit
Inlet Size (cm)    1.27
Inlet Size (in)    1/2
Inlet Size (mm)    12.7
Maximum Flow Rate (L/min)    30
Maximum Operating Temperature (°C)    70
Maximum Operating Temperature (°F)    160
Maximum Working Pressure (psi)    1500
Maximum Working Pressure (kPa)    10340
Maximum Working Pressure (bar)    103.4
Meter Accuracy (%)    ±1%
Meter Pressure Loss (psi)    30
Meter Pressure Loss (kPa)    200
Meter Pressure Loss (bar)    2
Metering Gun Weight (lb)    3.5
Metering Gun Weight (kg)    1.58
Trigger Lock    Locking
Outlet Size (cm)    1.27
Outlet Size (mm)    12.7
Outlet Size (in)    0.75
Minimum Operating Temperature (°F)    -50
Minimum Operating Temperature (°C)    -45
Valve Type    Metered
Maximum Working Pressure (MPa)    10
