Our single wall farm B-skid tanks are manufactured in Clinton, IL. They are made with 12-gauge steel to ensure safe storage of flammable or combustible fluids.
These tanks come standard with full-length, integral skids. Easily maneuver empty tanks by the skids, lifting with a fork lift, or hoisting machinery using the lifting hook on top of the tank.

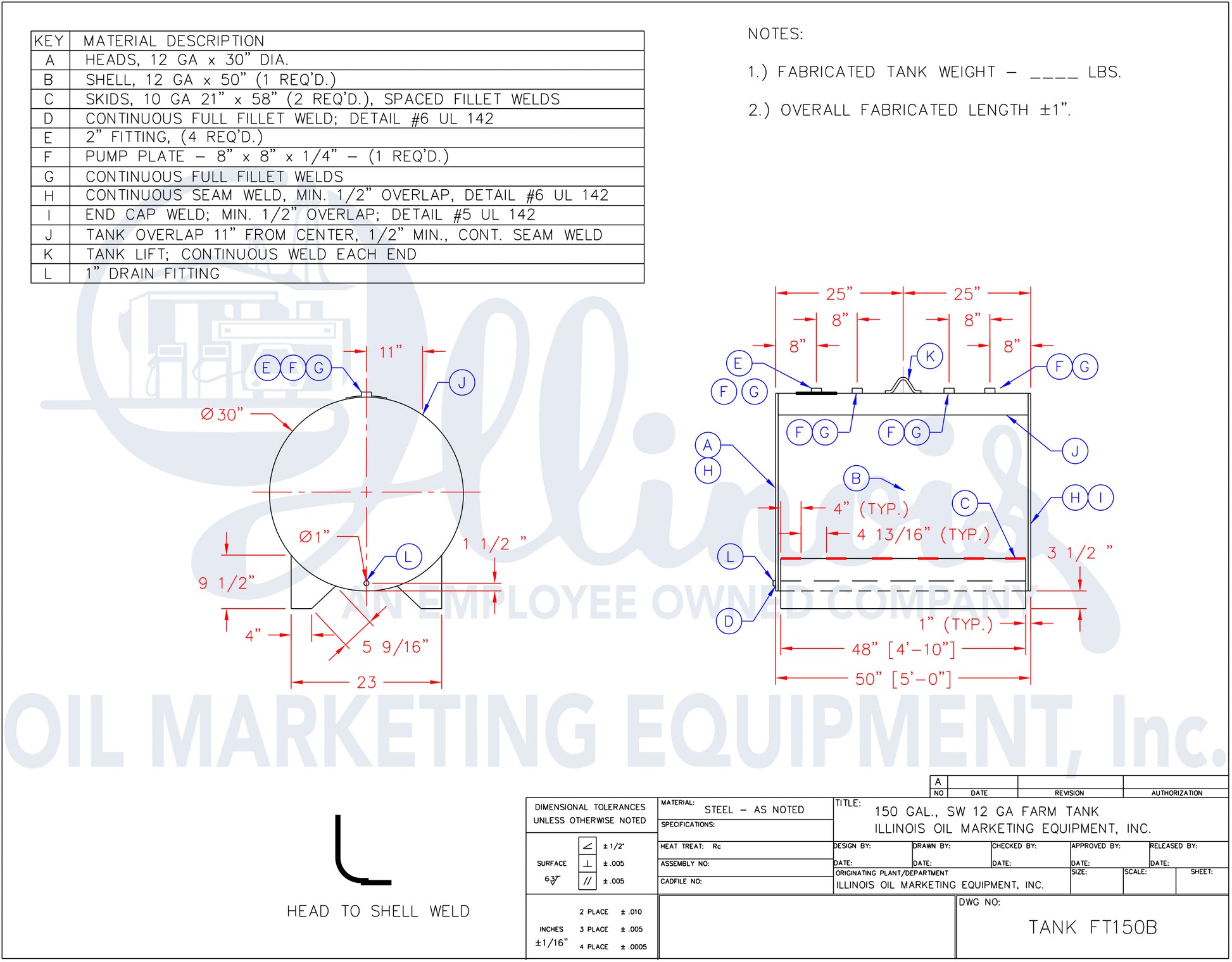

The 150 Gallon Single Wall Farm Skid Tanks bung openings include four(4) 2” openings and one(1) 1” drain opening. A reinforced steel plate is welded on top with a 2" opening for the pump to mount to for extra stability.
150 Gallon Tank:
30" Diameter x 50" Long, Max Capacity ≈153 Gallons
- (1) 2" reinforced pump opening
- (3) 2" openings for gauge, pressure vacuum vent, and fill cap
- (1) 1" drain opening on the side at the bottom
Manufacturer: Illinois Oil Marketing Equipment, Inc. in Clinton, IL
Steel Thickness: 12 Gauge
Diameter x Length: 30 in. x 50 in.
Product Type: Single Wall
Weight: 340.00 LBS
Orientation: Horizontal Stationary (not for mobile use)
