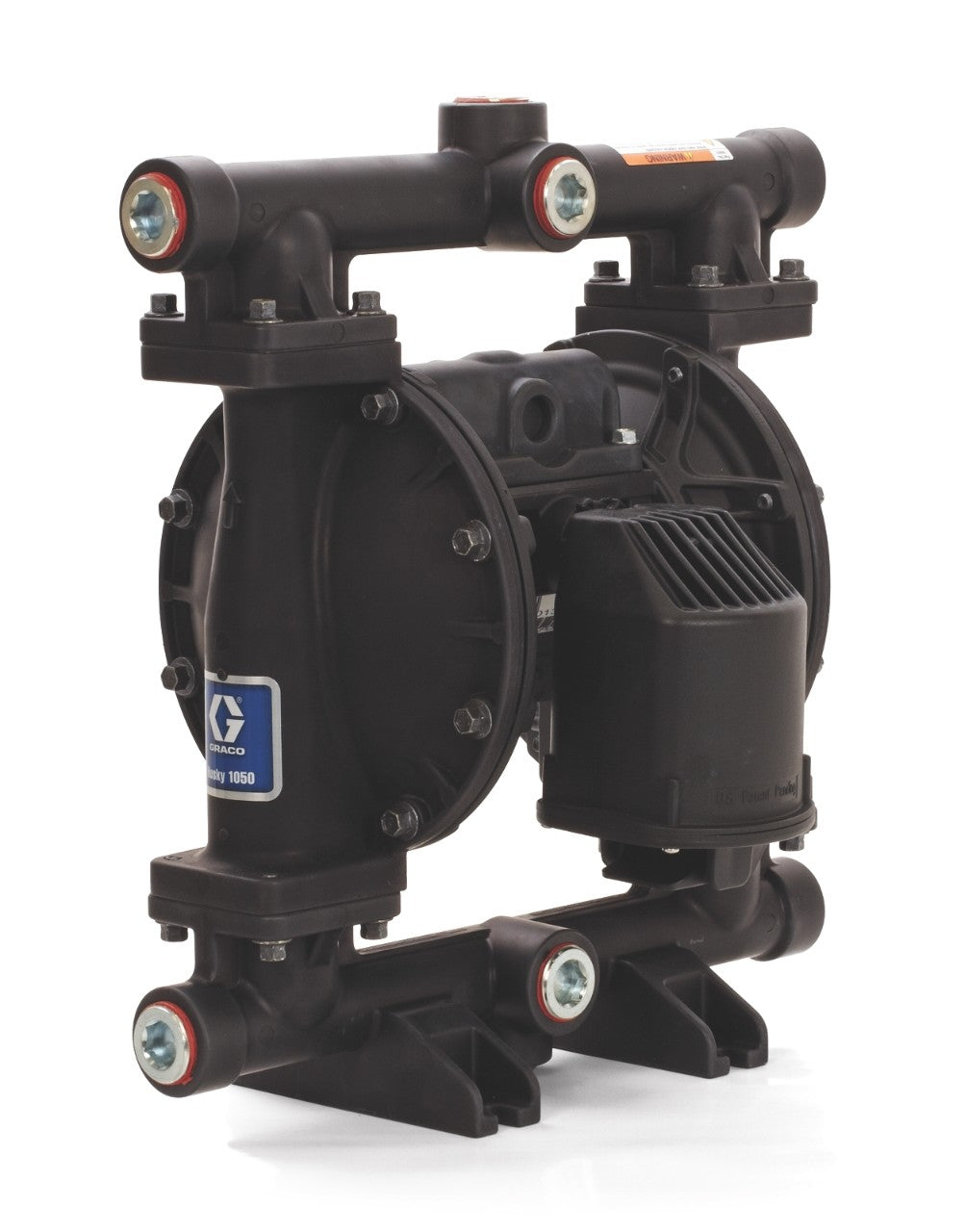

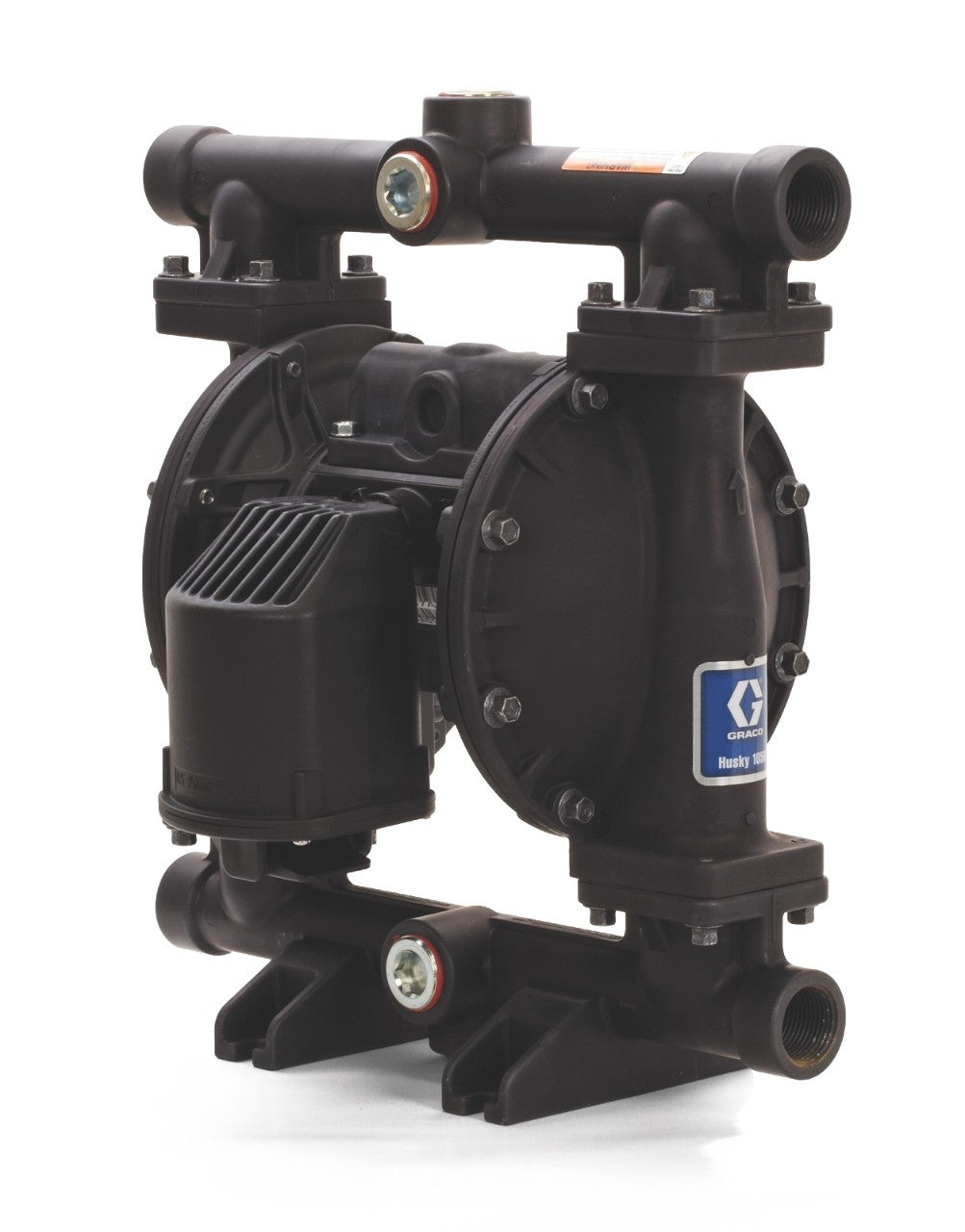

Graco 647016 Husky 1050 1" Air-Operated Double Diaphragm Transfer Pump, AL/TPE

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Fluid Inlet Size 1in, Fluid Outlet Size 1in
• Air Inlet Size 1/2in
• Maximum Flow Rate (GPM) 50
• Maximum Fluid Pressure (psi) 100
• Maximum Solid Size (in) 0.125
• Wetted Material Aluminum, TPE, Acetal
• Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
• Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section - Eliminates air leaks for more efficient operation
• Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
• Multiple Ports - Increased number of ports for installation flexibility
• Optional Features - DataTrak (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

647016
