Graco

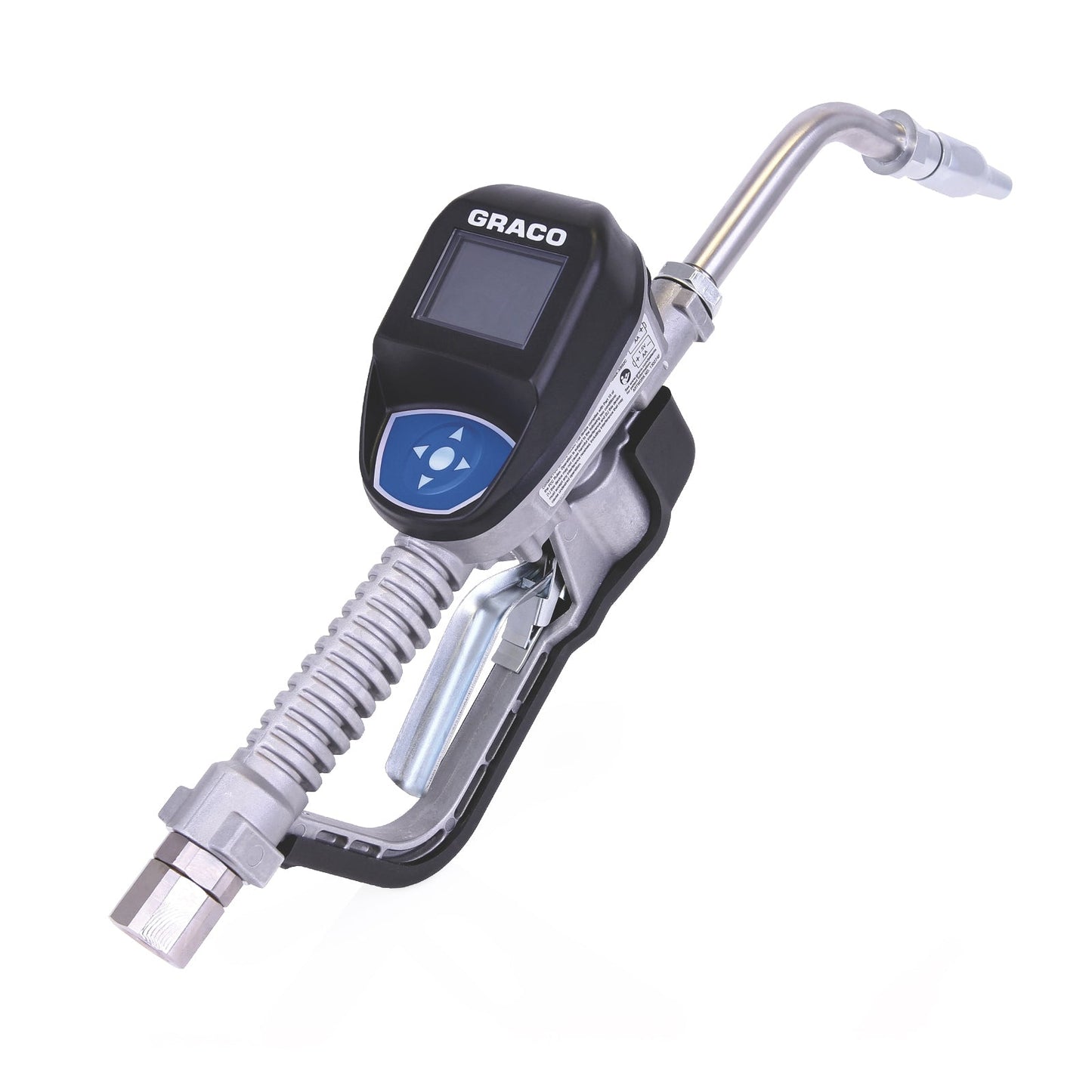

Graco 25M317 Pulse Metered Dispense Valve for Oil Applications - 1/2 in NPT, Rigid Extension, Automatic Nozzle

Graco 25M317 Pulse Metered Dispense Valve for Oil Applications - 1/2 in NPT, Rigid Extension, Automatic Nozzle

$2,160.00 USD
$2,230.00 USD $2,160.00 USD
Sale Sold out

Special Order 15-23 Days for Drop Ship
View Product Information View full details

Graco dispense meters designed for our Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.

  • Track and record inventory levels with electronic metering
  • Increase technician productivity
  • Flexible—one meter can handle all fluids
  • Reliable—time-tested Graco engineering
  • Large, Intuitive Display—high-contrast display for low and bright light conditions
  • Protective trigger guard—prevents accidental dispenses
  • Four finger trigger with lock-on feature
  • No need to leave bay or use computer to complete dispense
  • Long battery life—uses 4 AA easy-to-replace batteries

Division    LED
Family Code    FAMPUL
Country of Origin    US
Unit of Measure    EA
Height    7 IN  |  17.780 CM
Length    16 IN  |  40.640 CM
Width    5.5 IN  |  13.970 CM
Volume    .356 FT3  |  0.010 M3
Shipping Weight    6.6 LBS  |  2.994 KG
HTS Code (CA)    8481800083
HTS Code (US)    8481809020
Technical Specifications
Display Type    LCD
Extension Type    Rigid
Fluid Inlet Thread Gender    Female
Includes    Extension, Nozzle, Batteries, Swivel Boot
Inlet Size (cm)    1.27
Inlet Size (in)    1/2
Inlet Size (mm)    12.7
Maximum Operating Temperature (°C)    70
Maximum Operating Temperature (°F)    158
Maximum Storage Temperature (°F)    158
Maximum Storage Temperature (°C)    70
Maximum Working Pressure (psi)    1500
Maximum Working Pressure (kPa)    10340
Maximum Working Pressure (bar)    103.4
Meter Accuracy (%)    ±0.5
Overall Length (cm)    33
Overall Length (ft)    1
Overall Length (in)    13
Overall Length (mm)    330
Overall Width (cm)    9.5
Overall Width (in)    3.75
Overall Width (mm)    95
Meter Technology    Oval Gear
Metering Gun Weight (lb)    5.3
Metering Gun Weight (kg)    2.4
Minimum Flow Rate (GPM)    0.25
Minimum Flow Rate (L/min)    0.9
Warranty    Five Years Structural, 3 Years Electronics, 1 Year Wear Components
Trigger Lock    Locking
Minimum Operating Temperature (°F)    4
Minimum Operating Temperature (°C)    -16
Maximum Working Pressure (MPa)    10.3
Overall Length (m)    0.33
Product Type    Meter
Model    Pulse
