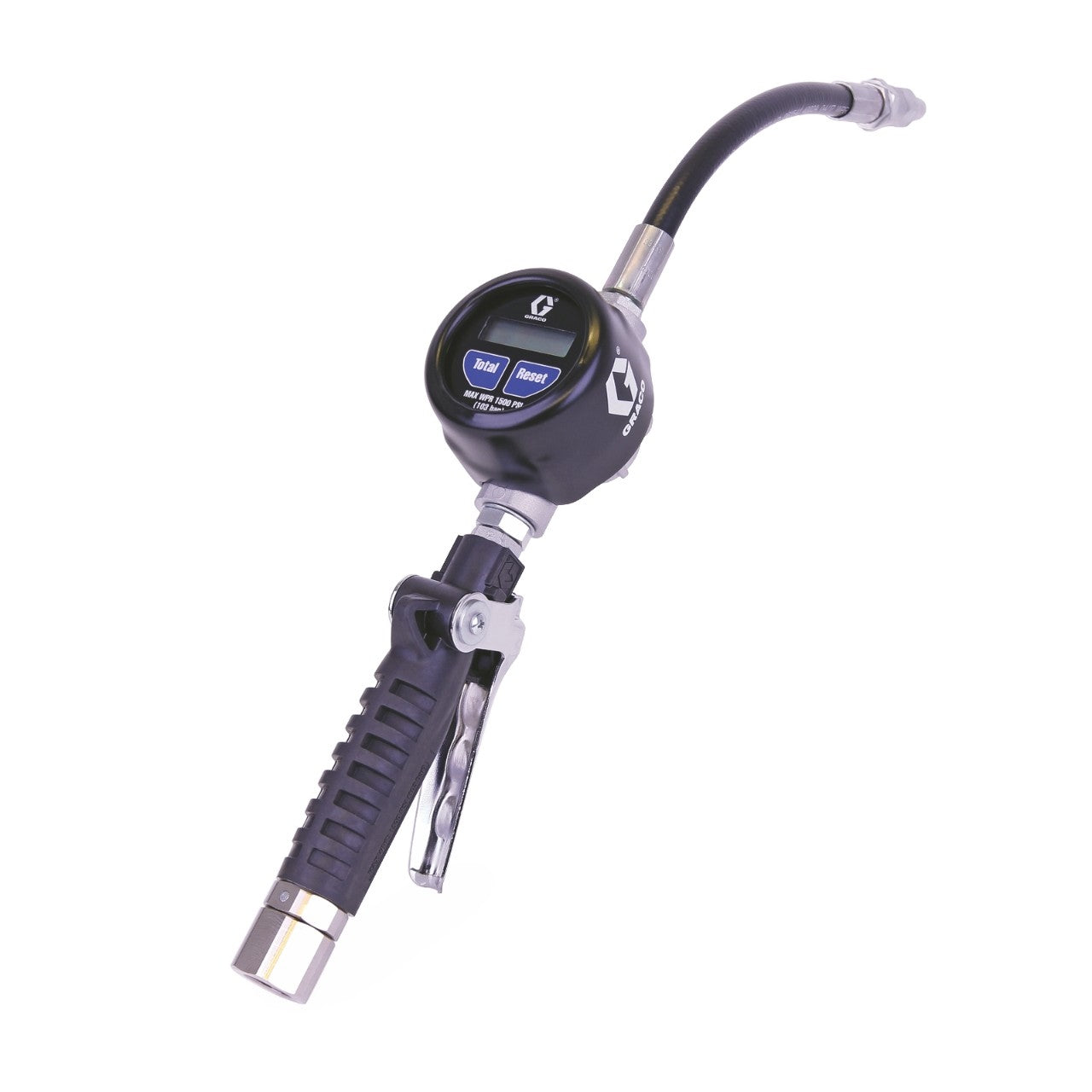

Graco 25C904 EM8 Electronic Manual Oil/Antifreeze Meter - Flexible Extension - 1/2 in. NPT Inlet

Graco 25C904 EM8 Electronic Manual Oil/Antifreeze Meter - Flexible Extension - 1/2 in. NPT Inlet

$763.00 USD
$845.00 USD $763.00 USD
Sale Sold out

View Product Information View full details

Use to dispense of petroleum based oils and anti-freeze. Not approved for use in explosive atmospheres or hazardous locations.

EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.

  • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
  • High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
  • Legacy Valve - 1/2 inch (13 mm) inlet, compatible with oil and Antifreeze.
  • Prevent Accidental Dispenses - Easy-to-hold locking handle.
  • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
  • Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries

Division    LED
Family Code    FAMMLD
Country of Origin    CN
Unit of Measure    EA
Height    4.75 IN  |  12.065 CM
Length    14.5 IN  |  36.830 CM
Width    5.5 IN  |  13.970 CM
Volume    .219 FT3  |  0.006 M3
Shipping Weight    4.4 LBS  |  1.996 KG
HTS Code (US)    8481805090
HTS Code (CA)    8481800069
Technical Specifications
Approvals    CE
Calibration Type    Factory Calibrated
Display Type    Electronic
Extension Type    Flexible
Fluid Inlet Thread Gender    Female
Fluid Outlet Thread Gender    Female
Includes    Nozzle, Extension
Inlet Size (cm)    1.27
Inlet Size (in)    1/2
Inlet Size (mm)    12.7
IP Rating    69K
Maximum Flow Rate (cc/min)    30283
Maximum Flow Rate (L/min)    30.3
Maximum Flow Rate (cc/sec)    505
Maximum Operating Temperature (°C)    82
Maximum Operating Temperature (°F)    180
Maximum Recorded Dispense    19999
Maximum Storage Temperature (°F)    185
Maximum Storage Temperature (°C)    85
Maximum Working Pressure (psi)    1500
Maximum Working Pressure (kPa)    10200
Maximum Working Pressure (bar)    102
Meter Accuracy (%)    ±0.5
Meter Pressure Loss (psi)    30 PSI at 6 GPM
Meter Pressure Loss (bar)    2.1 Bar at 6 GPM
Overall Height (cm)    13.3
Overall Height (in)    5.25
Overall Height (mm)    133
Overall Length (cm)    33
Overall Length (in)    13
Overall Length (mm)    330
Overall Width (cm)    9
Overall Width (in)    3.5
Overall Width (mm)    90
Meter Technology    Oval Gear
Metering Gun Weight (lb)    3
Metering Gun Weight (kg)    1.36
Minimum Flow Rate (GPM)    0.25
Minimum Flow Rate (L/min)    0.95
Warranty    5 Years
Trigger Protection Type    Lock Off Button
Trigger Lock    Locking
Series    A
Outlet Size (cm)    1.905
Outlet Size (mm)    19.05
Outlet Size (in)    3/4
Minimum Operating Temperature (°F)    -22
Minimum Operating Temperature (°C)    -30
Valve Type    Metered
Maximum Working Pressure (MPa)    10.2
Maximum Totalizer    19999
Model    EM8
