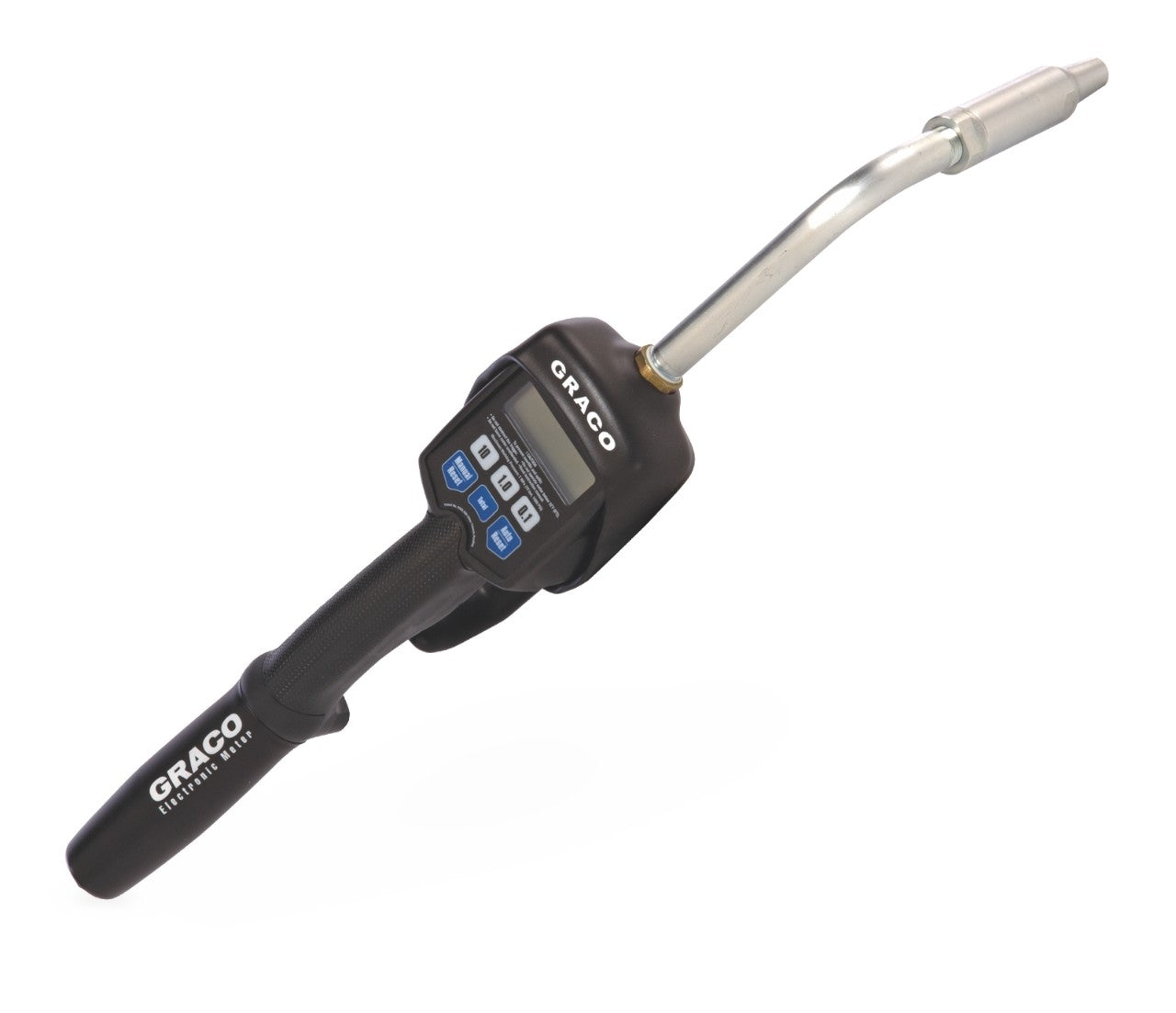

Graco 256216 LDP5 Electronic Preset Meter - Rigid Extension - 1/2 in. NPT Inlet - Trigger Guard and Swivel Cover Included

Graco 256216 LDP5 Electronic Preset Meter - Rigid Extension - 1/2 in. NPT Inlet - Trigger Guard and Swivel Cover Included

$1,090.00 USD
$1,200.00 USD $1,090.00 USD
Sale Sold out

View Product Information View full details

Graco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.

  • Easy to read LCD screen keeps dispenses precise.
  • Inlet 1/2 in. NPT with swivel.
  • Rugged meter body is impact resistant for long life.
  • Ergonomically-design, comfortable handle with two-finger trigger.
  • Preset meter automatically shuts-off flow when preset quantity has been dispensed.

Division    LED
Family Code    FAMMLD
Country of Origin    CN
Unit of Measure    EA
Height    5.3 IN  |  13.462 CM
Length    5 IN  |  12.700 CM
Width    14.4 IN  |  36.576 CM
Volume    .221 FT3  |  0.006 M3
Shipping Weight    4.98 LBS  |  2.259 KG
HTS Code (CA)    8481800069
HTS Code (US)    8481809020
Technical Specifications
Approvals    CE
Dispense Type    Preset
Display Type    Electronic
Extension Type    Rigid
Fluid Inlet Thread Gender    Female
Fluid Outlet Thread Gender    Female
Includes    Nozzle, Extension, Trigger Guard, Swivel Cover
Inlet Size (cm)    1.27
Inlet Size (in)    1/2
Inlet Size (mm)    12.7
Maximum Flow Rate (L/min)    19
Maximum Operating Temperature (°C)    49
Maximum Operating Temperature (°F)    120
Maximum Storage Temperature (°F)    120
Maximum Storage Temperature (°C)    49
Maximum Working Pressure (psi)    1000
Maximum Working Pressure (kPa)    6900
Maximum Working Pressure (bar)    69
Meter Accuracy (%)    ±0.5
Overall Height (cm)    8.3
Overall Height (in)    3.25
Overall Height (mm)    83
Overall Length (cm)    28
Overall Length (in)    11
Overall Length (mm)    280
Overall Width (cm)    8.3
Overall Width (in)    3.25
Overall Width (mm)    83
Metering Gun Weight (lb)    3
Metering Gun Weight (kg)    1.36
Minimum Flow Rate (GPM)    0.1
Minimum Flow Rate (L/min)    0.4
Warranty    5 years Structural Components, 2 years Electronics, 1 year Wear Parts
Trigger Protection Type    Guard
Trigger Lock    Locking
Outlet Size (cm)    0.9525
Outlet Size (mm)    9.525
Outlet Size (in)    3/8
Minimum Operating Temperature (°F)    32
Minimum Operating Temperature (°C)    0
Valve Type    Metered
Maximum Working Pressure (MPa)    7
Model    LDP5
