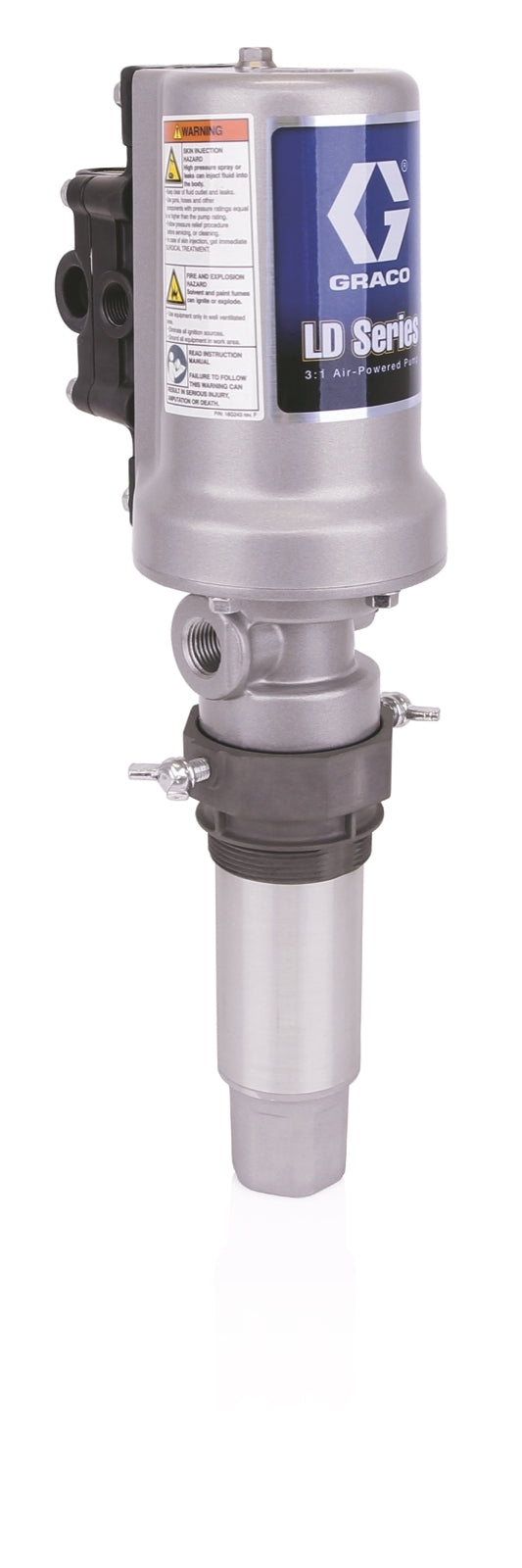

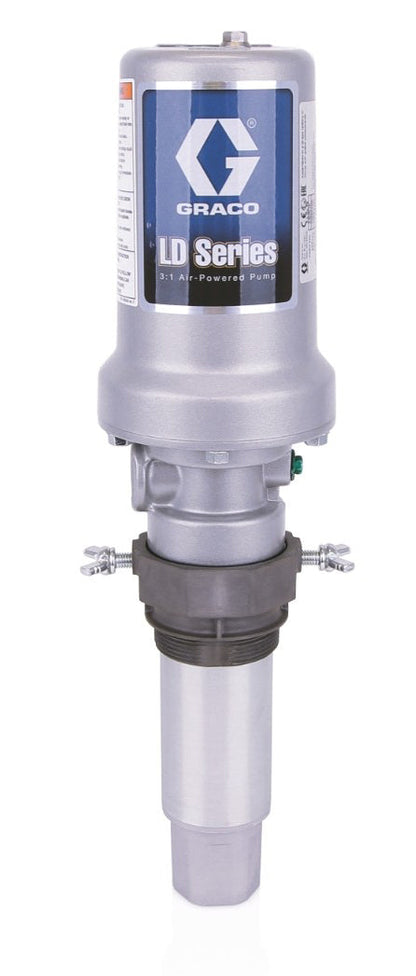

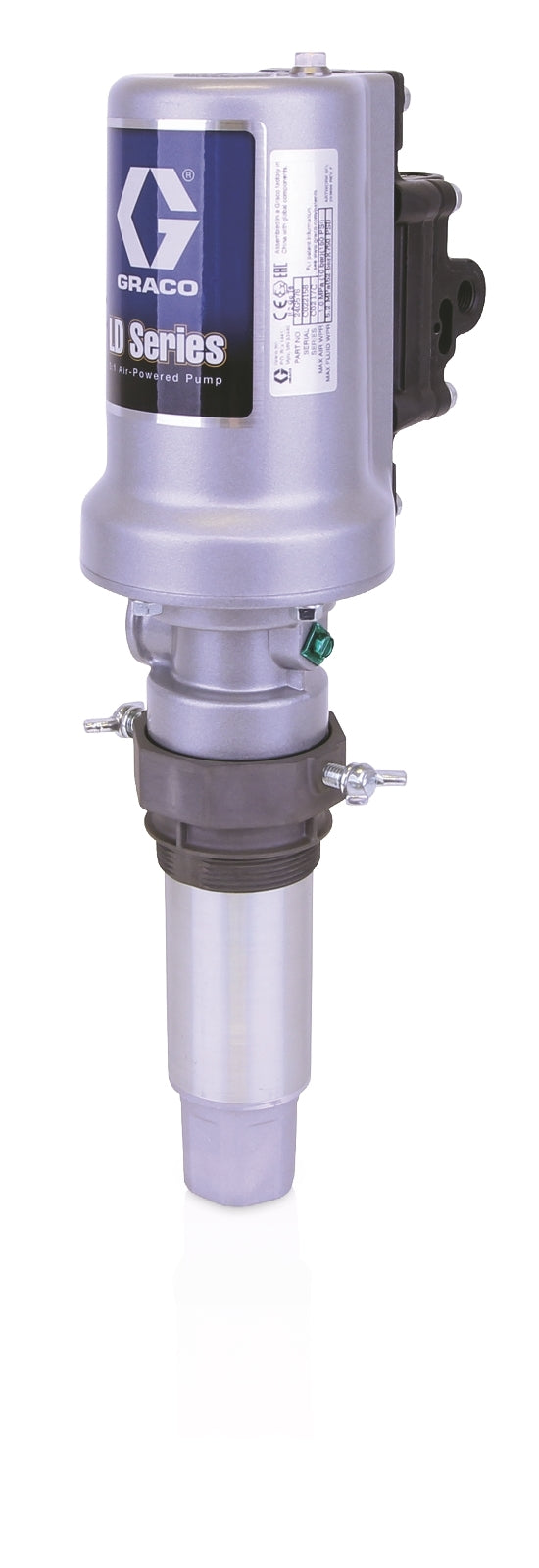

Graco 24G576 LD Series 3:1 Universal Oil Pump with Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD‚Ñ¢ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Fluid Inlet Size (in) 1,¬†Fluid Outlet Size (in) 1/2
• Air Inlet Size (in) 1/4
• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

Division    LED
Family Code    FAMPLD
Country of Origin    CN
Unit of Measure    EA
Height    9.6 IN  |  24.384 CM
Length    18 IN  |  45.720 CM
Width    7.2 IN  |  18.288 CM
Volume    .72 FT3  |  0.020 M3
Shipping Weight    10 LBS  |  4.536 KG
HTS Code (CA)    8413199090
HTS Code (US)    8413190000
Technical Specifications
Air Inlet Size (in)    1/4
Air Inlet Size (mm)    6.35
Fluid Inlet Size (in)    1
Fluid Inlet Size (mm)    25.4
Fluid Outlet Size (mm)    12.7
Maximum Air Inlet Pressure (bar)    10.34
Maximum Air Inlet Pressure (kPa)    1034
Maximum Air Inlet Pressure (psi)    150
Maximum Working Pressure (bar)    51.7
Maximum Working Pressure (kPa)    5170
Maximum Working Pressure (psi)    750
Model    LD
Weight (kg)    0.3178
Maximum Working Pressure (MPa)    5.2
