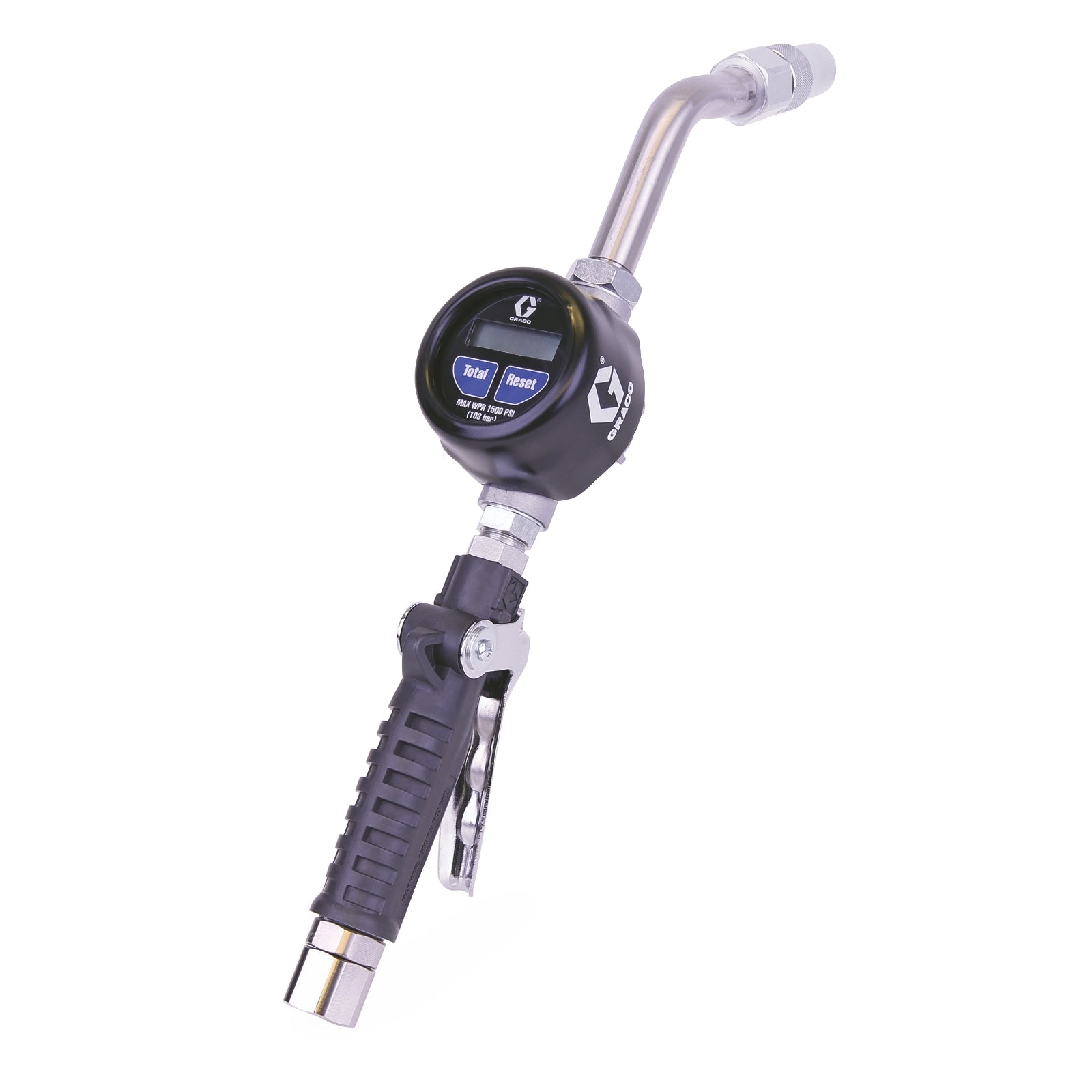

Graco 25C919 EM20 Electronic Manual Oil/Antifreeze Meter - Rigid Extension - 3/4 in. Inlet - NPT

Graco 25C919 EM20 Electronic Manual Oil/Antifreeze Meter - Rigid Extension - 3/4 in. Inlet - NPT

$1,100.00 USD
$1,190.00 USD $1,100.00 USD
Sale Sold out

Special Order 4-6 Days for Drop Ship
View Product Information View full details

EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.

  • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
  • High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
  • Legacy Valve - 3/4 inch (19 mm) inlet, compatible with oil and Antifreeze.
  • Prevent Accidental Dispenses - Easy-to-hold locking handle.
  • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
  • Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.

Division    LED
Family Code    FAMMXD
Country of Origin    CN
Unit of Measure    EA
Height    5 IN  |  12.700 CM
Length    14.5 IN  |  36.830 CM
Width    5.5 IN  |  13.970 CM
Volume    .231 FT3  |  0.007 M3
Shipping Weight    5 LBS  |  2.268 KG
HTS Code (US)    8481805090
HTS Code (CA)    8481800069
Technical Specifications
Approvals    CE
Calibration Type    Factory Calibrated
Display Type    Electronic
Extension Type    Rigid
Fluid Inlet Thread Gender    Female
Fluid Outlet Thread Gender    Female
Includes    Nozzle, Extension
Inlet Size (cm)    1.91
Inlet Size (in)    3/4
Inlet Size (mm)    19.05
IP Rating    69K
Maximum Flow Rate (cc/min)    75708
Maximum Flow Rate (L/min)    75.7
Maximum Flow Rate (cc/sec)    1262
Maximum Operating Temperature (°C)    82
Maximum Operating Temperature (°F)    180
Maximum Recorded Dispense    19999
Maximum Storage Temperature (°F)    185
Maximum Storage Temperature (°C)    85
Maximum Working Pressure (psi)    1500
Maximum Working Pressure (kPa)    10200
Maximum Working Pressure (bar)    102
Meter Accuracy (%)    ±0.5
Meter Pressure Loss (psi)    85 PSI at 12 GPM
Meter Pressure Loss (bar)    5.9 Bar at 12 GPM
Overall Height (cm)    13.3
Overall Height (in)    5.25
Overall Height (mm)    133
Overall Length (cm)    33
Overall Length (in)    13
Overall Length (mm)    330
Overall Width (cm)    9
Overall Width (in)    3.5
Overall Width (mm)    90
Meter Technology    Oval Gear
Metering Gun Weight (lb)    3.1
Metering Gun Weight (kg)    1.39
Minimum Flow Rate (GPM)    0.25
Minimum Flow Rate (L/min)    0.95
Warranty    5 Years
Trigger Protection Type    Lock Off Button
Trigger Lock    Locking
Series    A
Outlet Size (cm)    2.2225
Outlet Size (mm)    22.225
Outlet Size (in)    7/8
Minimum Operating Temperature (°F)    -22
Minimum Operating Temperature (°C)    -30
Valve Type    Metered
Maximum Working Pressure (MPa)    10.2
Maximum Totalizer    19999
Model    EM20
