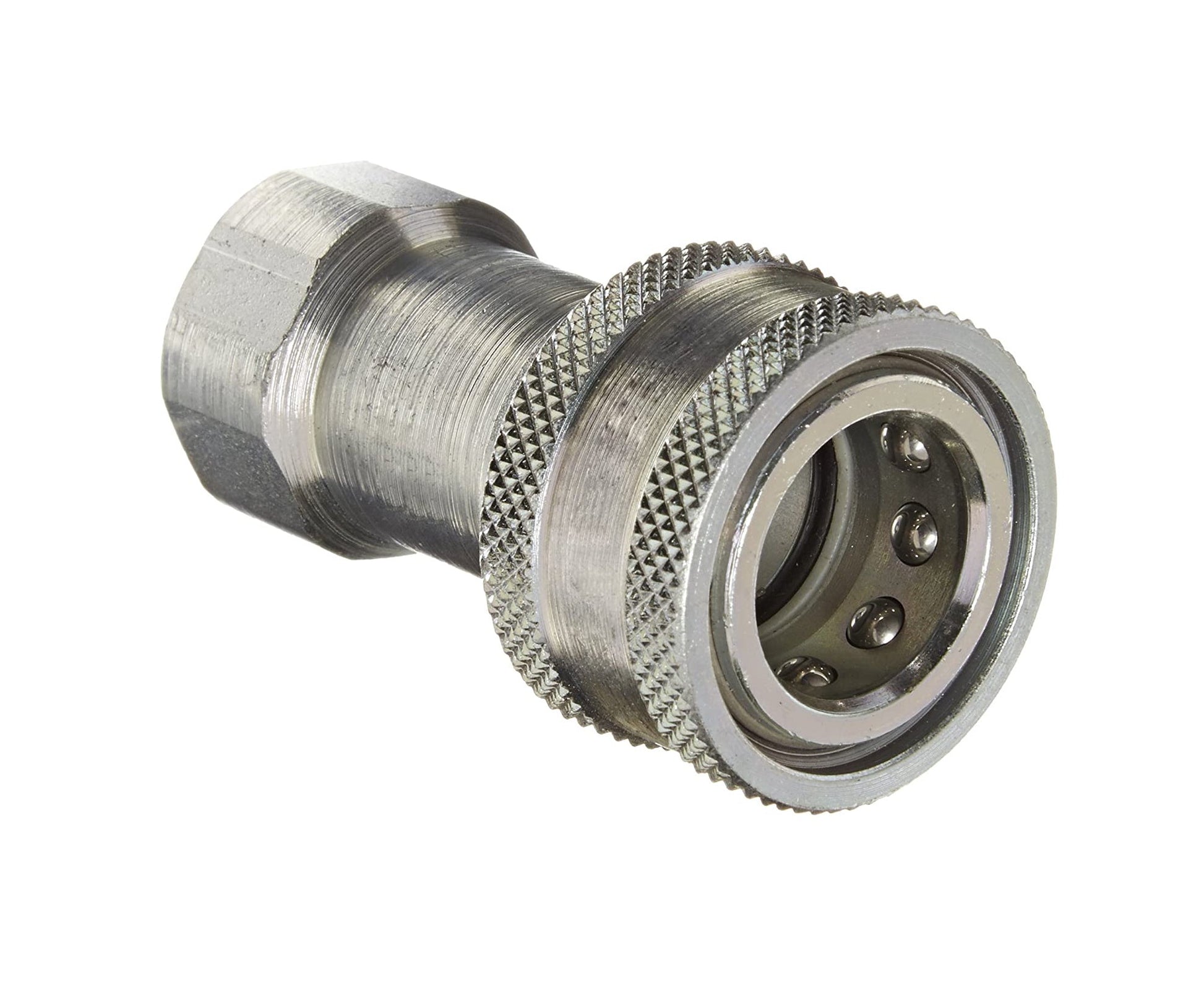

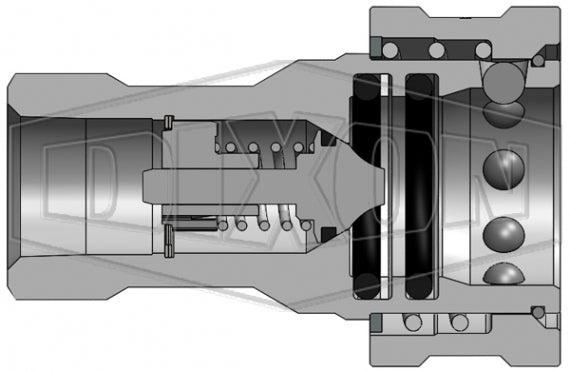

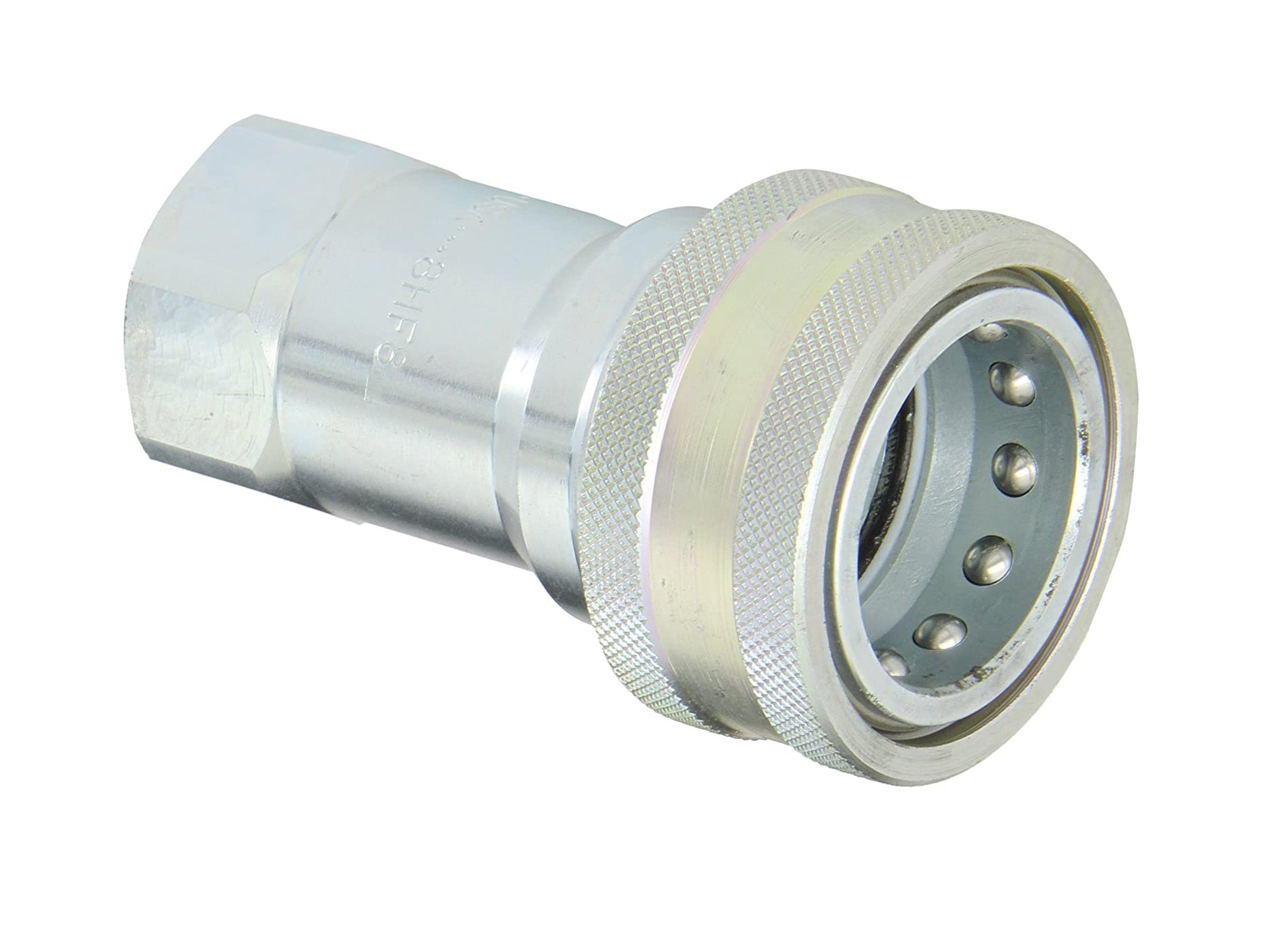

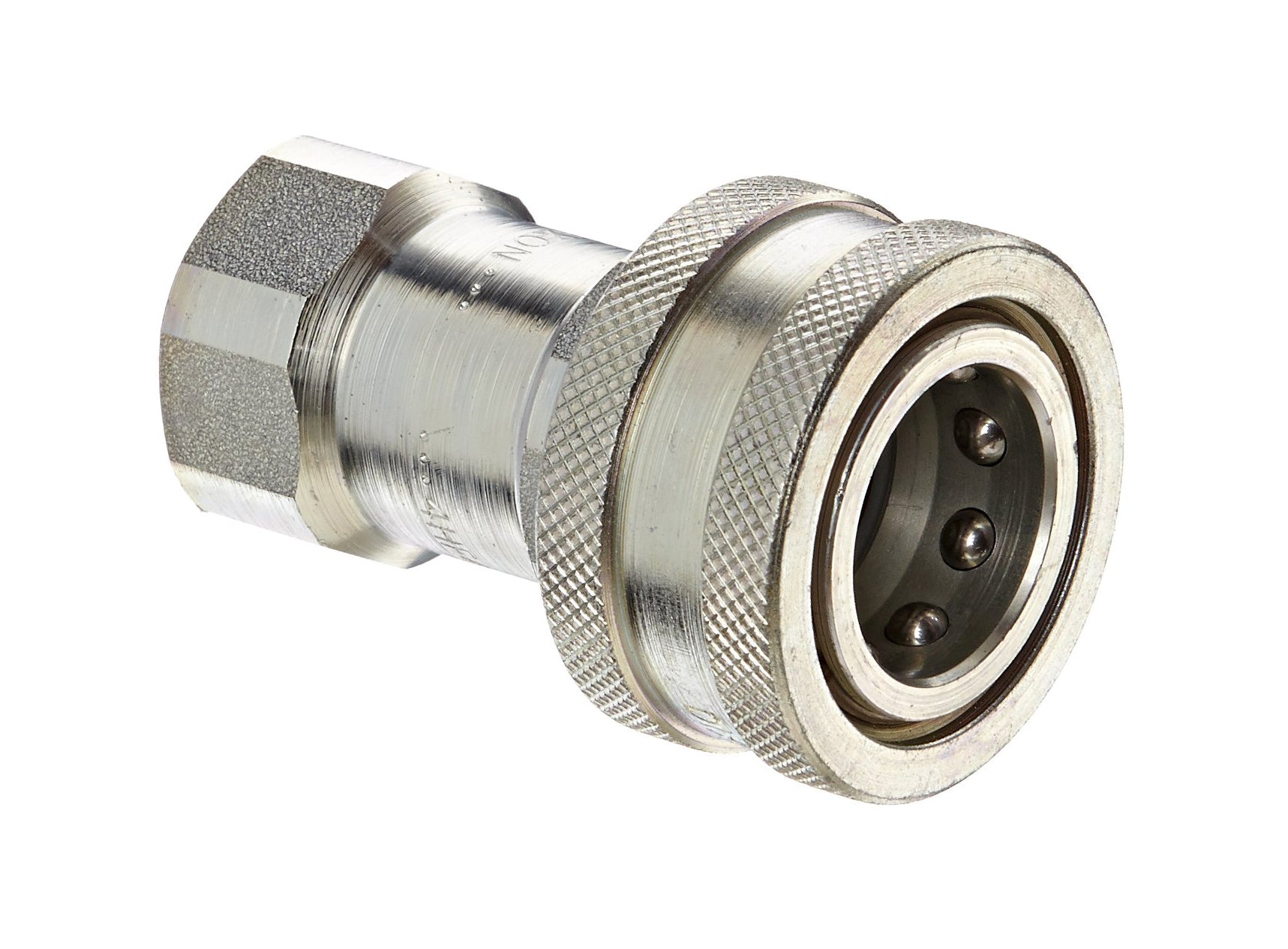

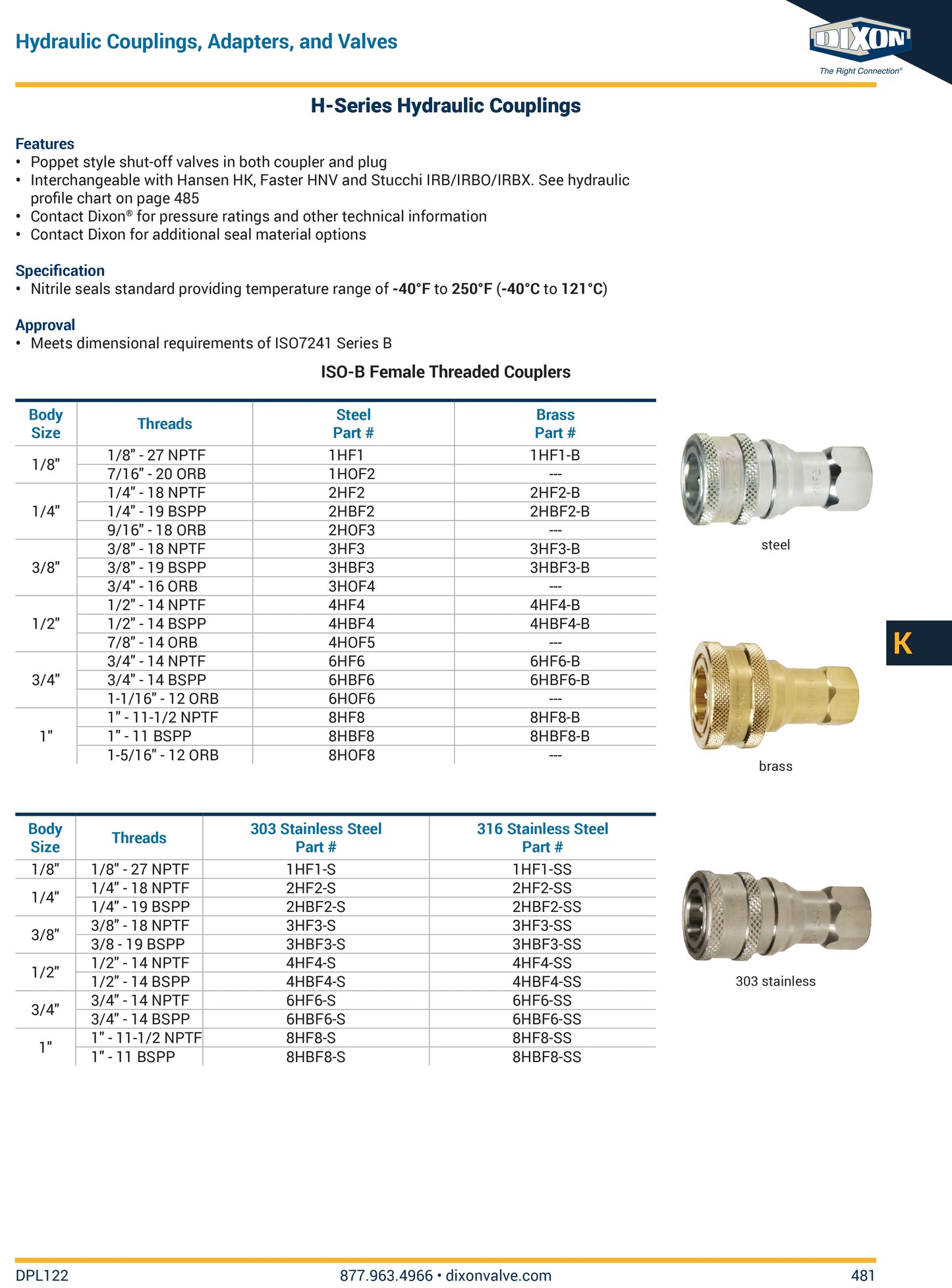

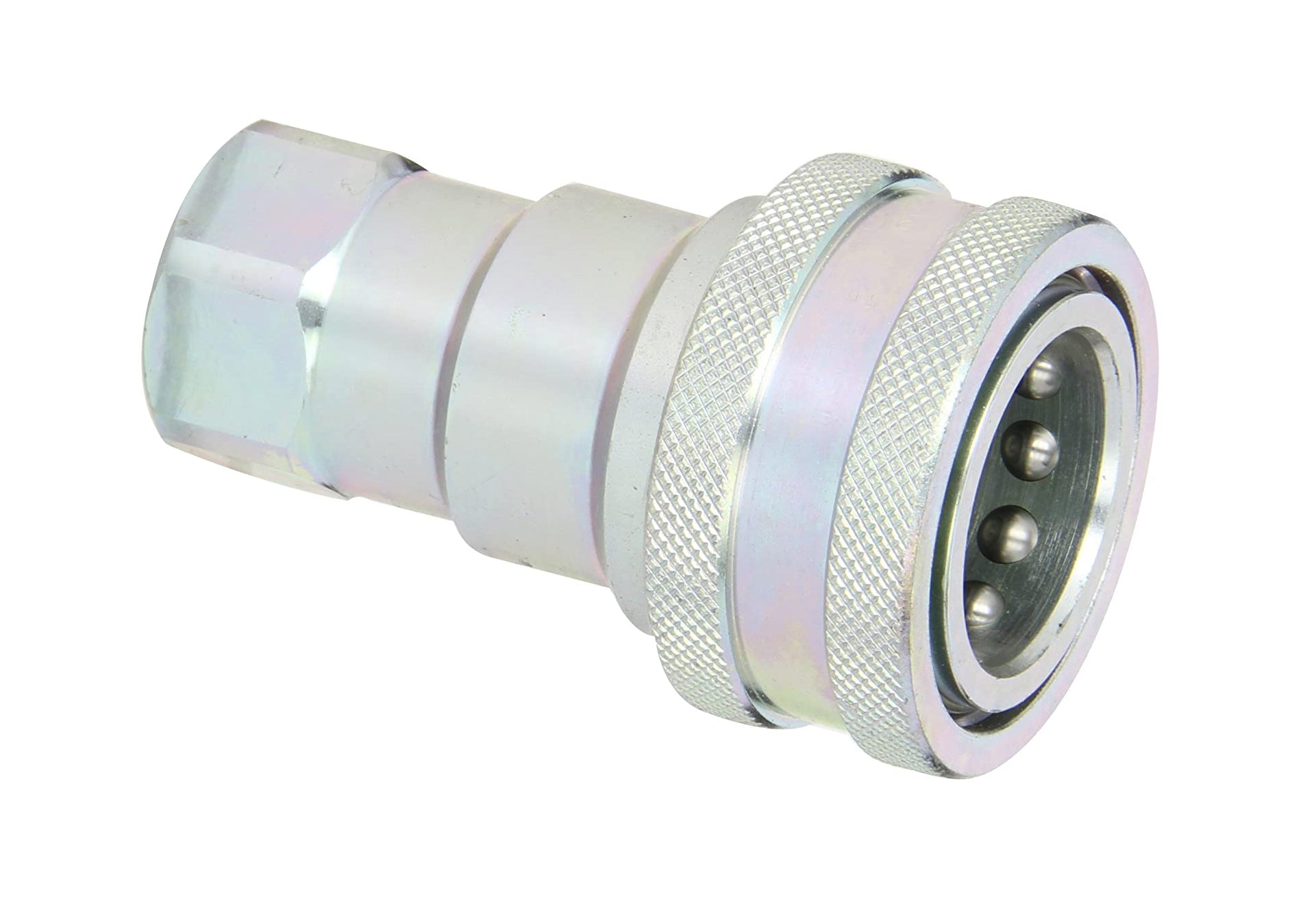

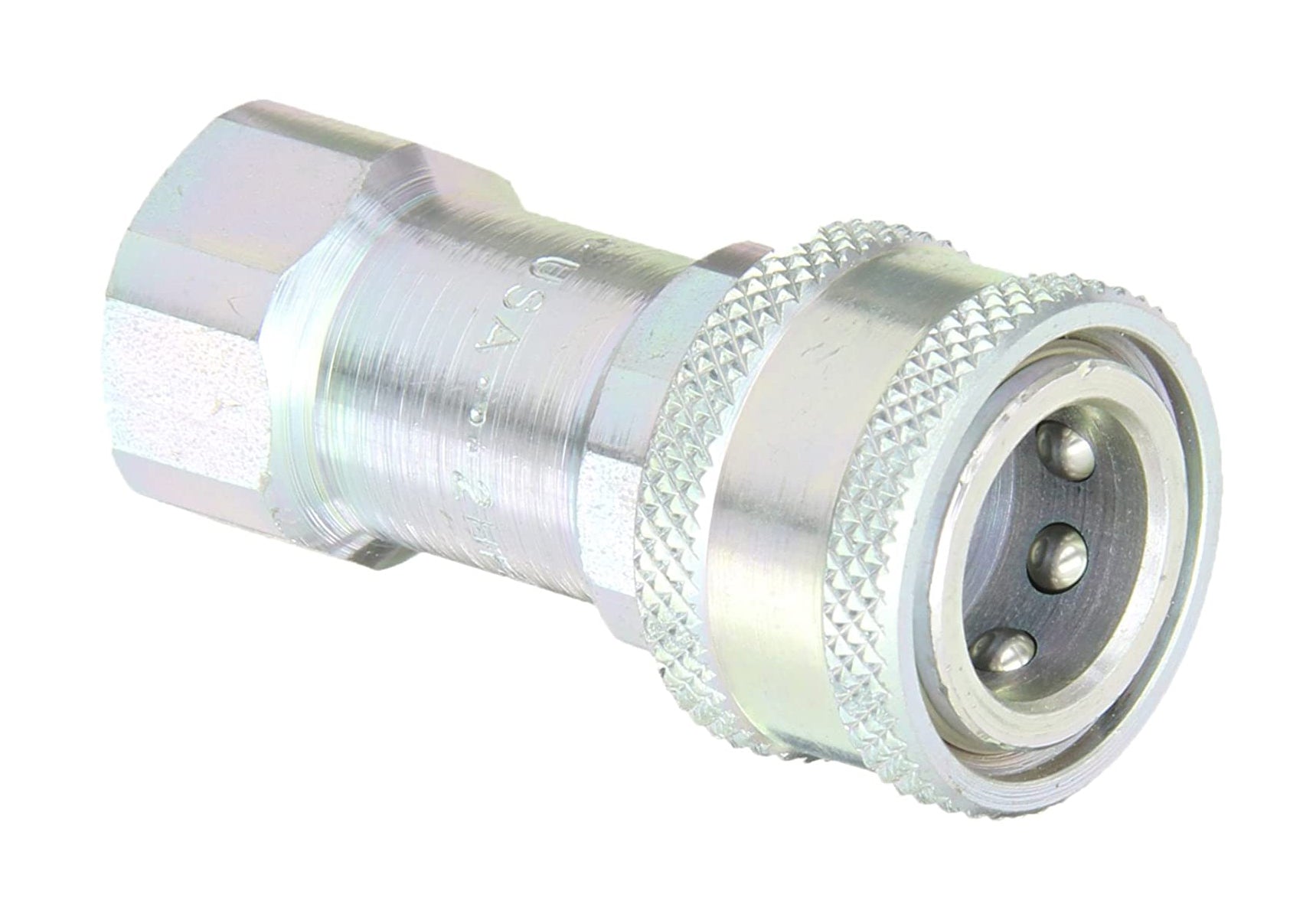

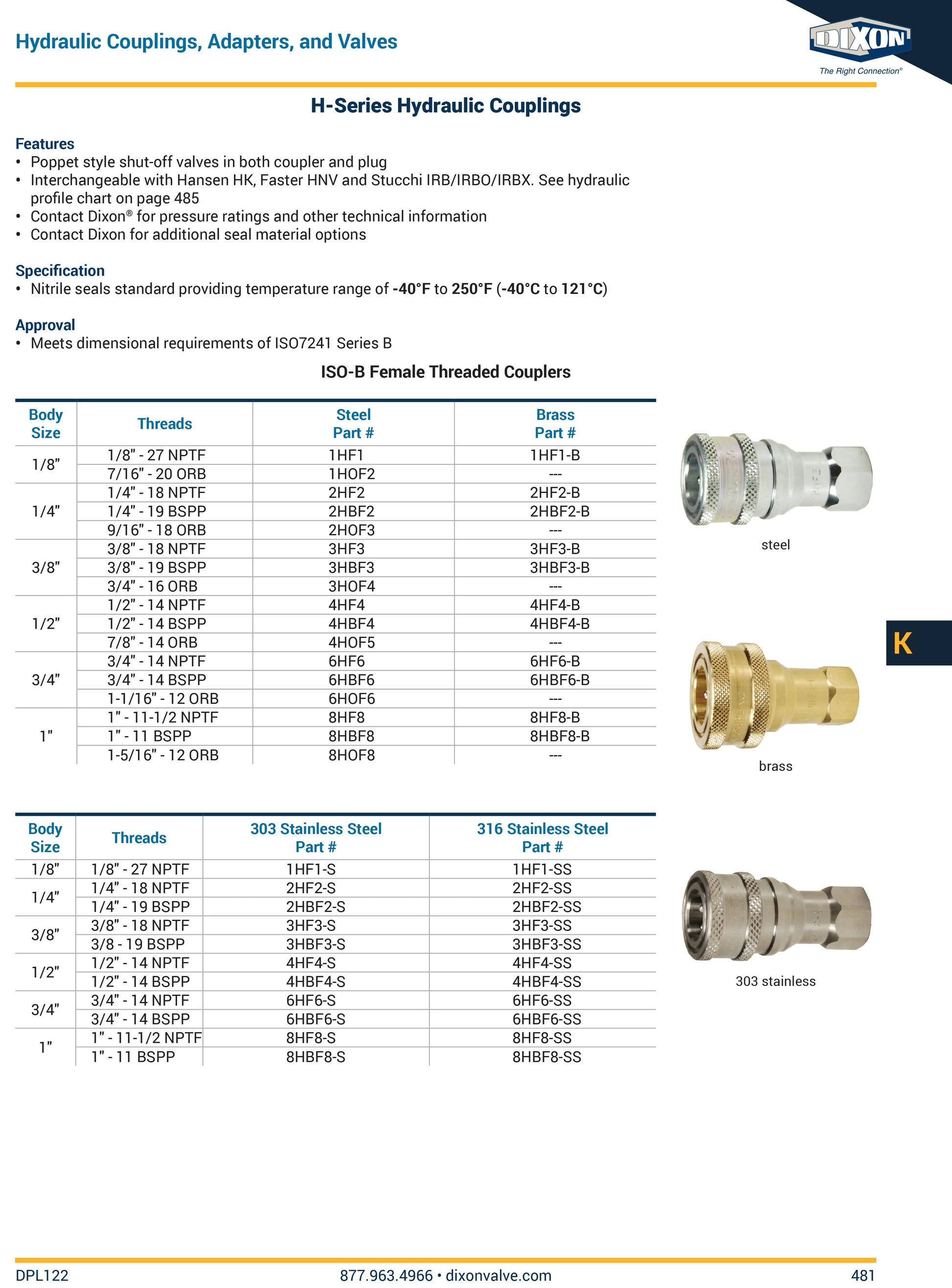

Dixon H-Series Hydraulic Coupler x Female NPT, Steel Plated, Quick Connect

H-Series ISO-B Poppet Valve Female Threaded Coupler

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
• Steel componentry is plated using ROHS Compliant Trivalent Chrome.
• Steel coupler sleeves are hardened to resist deformation and maximize service life.
• Nitrile (Nitrile Rubber) seals are standard
• Redundant o-ring sealing system with PTFE backup ring
• Designed to prevent fluid loss when disconnected
• Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.

• Meets dimensional requirements of ISO 7241 Series B. Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
