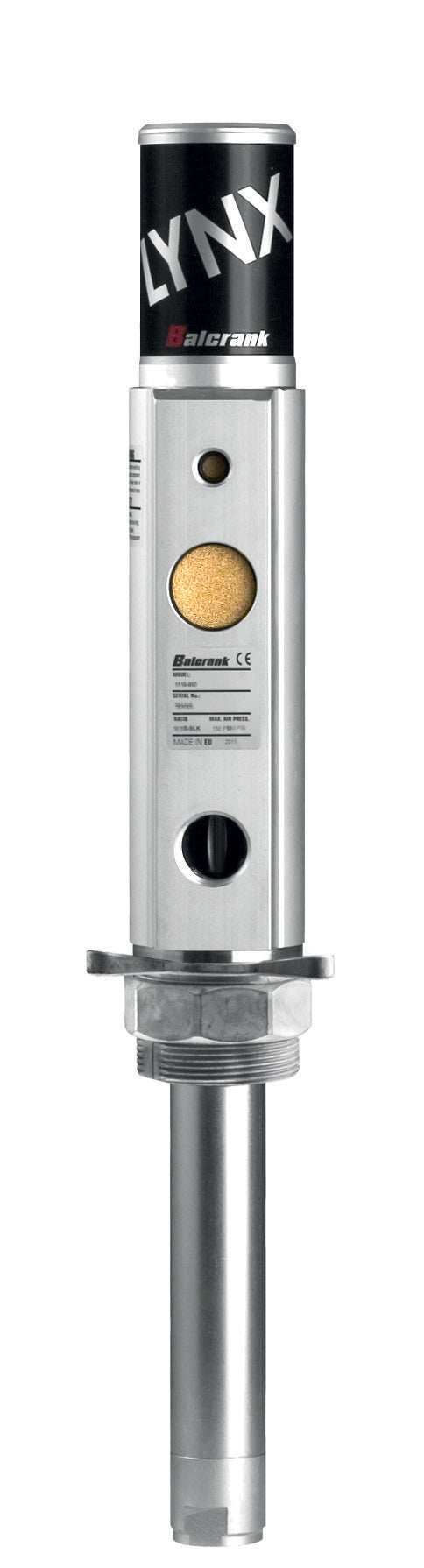

The LYNX 3:1 ratio double-acting pump is engineered for outstanding performance and reliability to dispense lubricating oils and similar products. The LYNX series pump is perfect for small volume users and is used with synthetics, and standard mineral oils. The 3:1 version is best for small tank packages, roll-around units for synthetic and mineral base drum applications. Pressure relief valve kit is NOT included with this pump (use kit 3120-086)
Compatible Liquids: Synthetic and mineral based lubricants Hydraulic fluid Transmission fluid
Pump ratio: 3:1 Operating air pressure: 45 to 150 psi (3 to 10 bar) Air Consumption: 18.8 scfm (@ 100 PSI & 3 GPM) Maximum pressure: 725 psi (50 bar) Air motor effective dia: 1.375” (35mm) Free Flow rate: 6.6 gal/min (25 l/min) (@ 68°F/150PSI/SAE 10W30) Air inlet: 1/4” NPT (F) Fluid inlet: 3/4” NPT (F) Fluid outlet: 3/4” NPT (F) Wetted materials: Buna-N™, Steel, Brass, Aluminum, and Polyurethane
NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Balcrank recommends a minimum of 3x safety factor for all hose fittings and piping for fluid outlet pressures.
