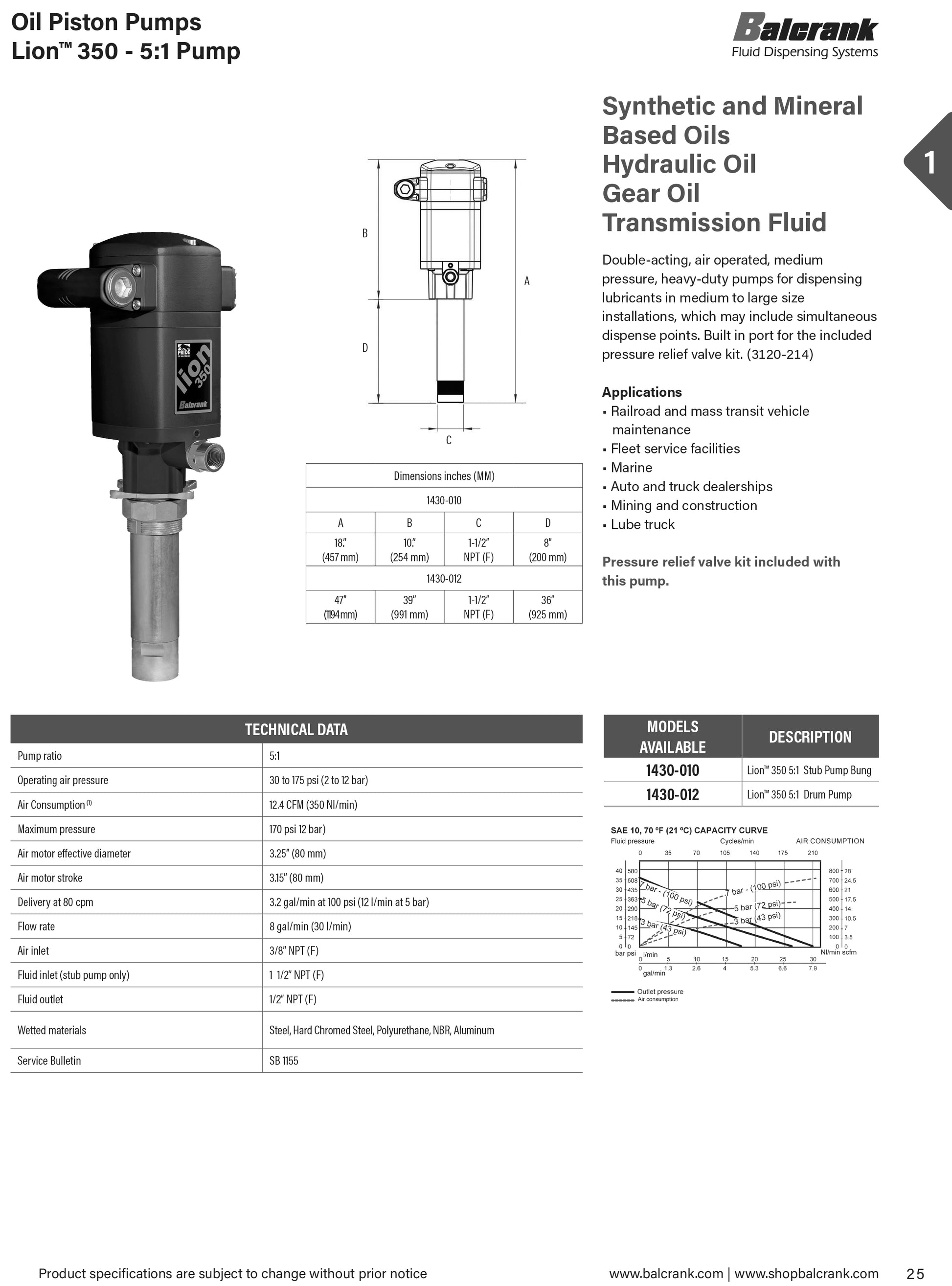

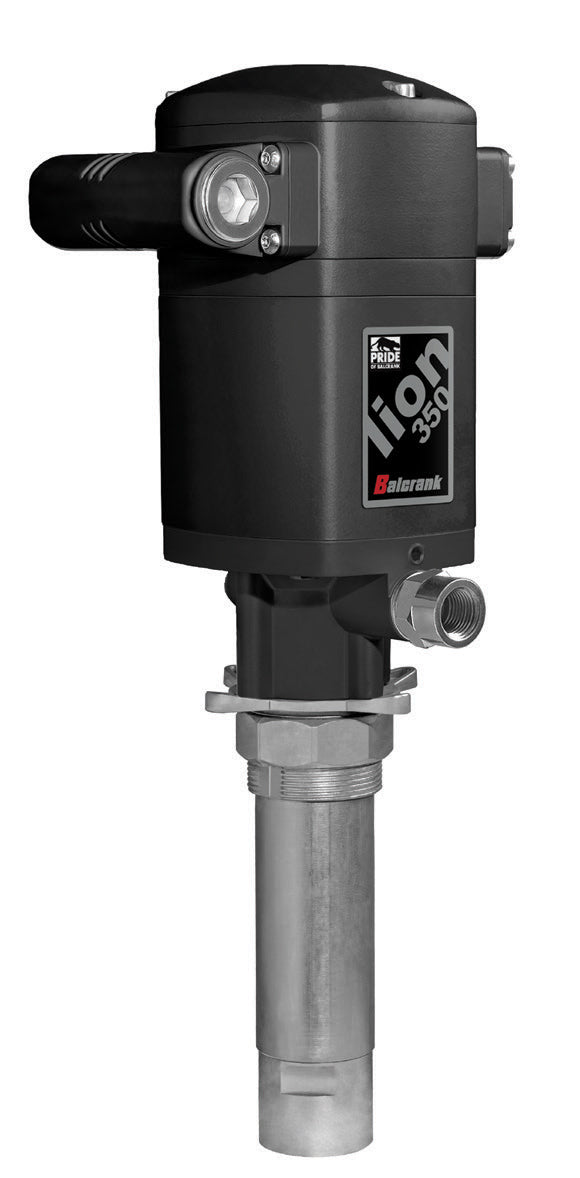

Double-acting, air operated, medium pressure, heavy-duty pumps for dispensing lubricants in medium to large size installations, which may include simultaneous dispense points. Built in port for the included pressure relief valve kit Pressure relief valve kit included with this pump (3120-214)
Compatible Liquids: Synthetic and Mineral Based Oils Hydraulic Oil Gear Oil Transmission Fluid
Pump ratio: 5:1 Operating air pressure: 30 to 175 psi (2 to 12 bar) Air Consumption: 12.4 scfm (350 Nl/min) Maximum pressure: 875 psi (60 bar) Air motor effective dia: 3.25” (80mm) Air motor stroke: 3.15” (80 mm) Delivery at 80 cpm: 3.2 gal/min (12 l/min) Flow rate: 8 gal/min (30 l/min) Air inlet: 3/8” NPT (F) Fluid inlet: 1 1/2” NPT (F) Fluid outlet: 1/2” NPT (F) Wetted materials: Hard chromed steel, Steel, Polyurethane, NBR, Aluminum Noise Level: Pump noise level meets OSHA requirements at all recommended operating air pressures
Maximum air consumption with 72 psi (5 bar) air inlet pressure and 80 cpm.
