The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Three Inch Air Motor - Provides more power to create better flow.
Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

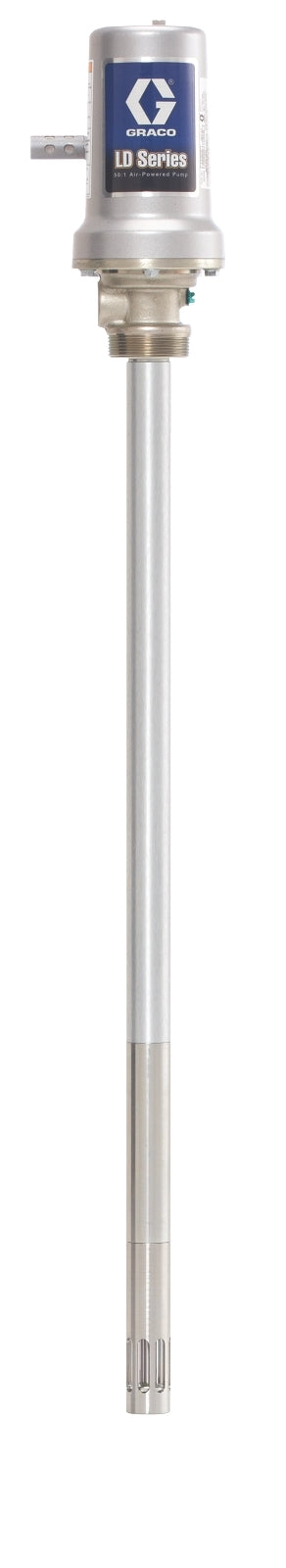

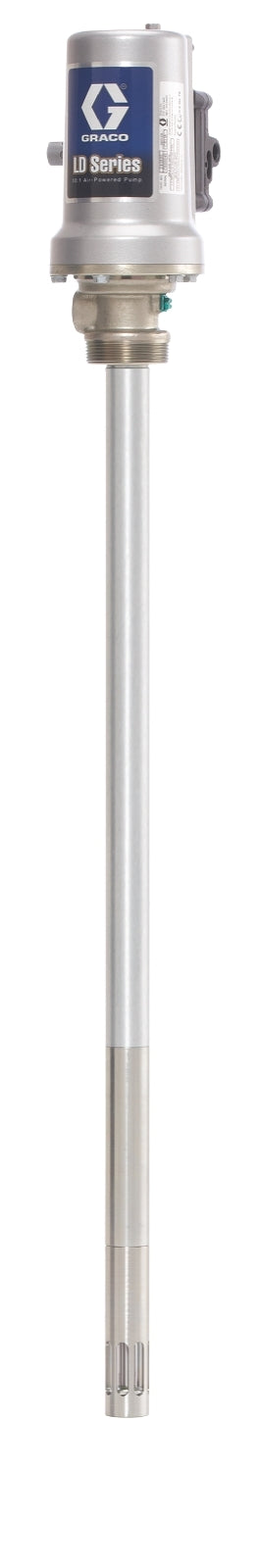

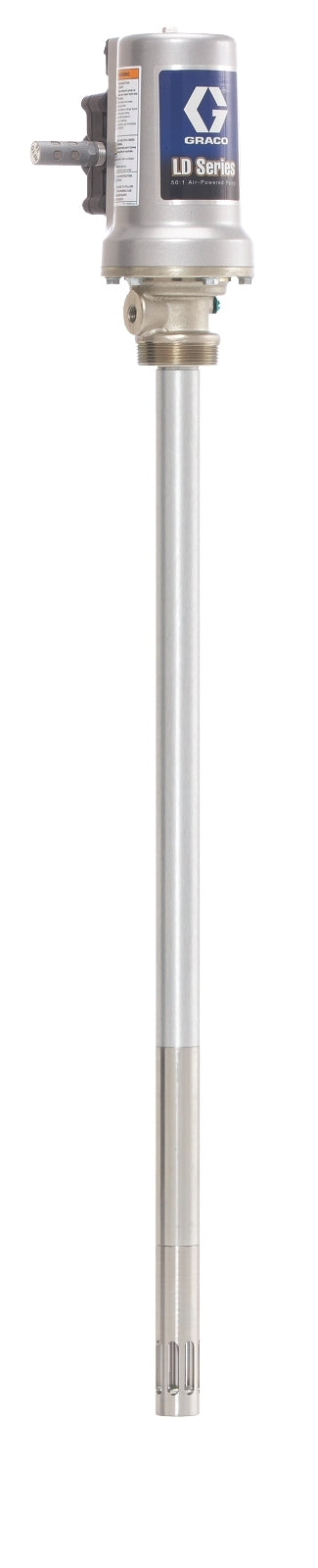

120 lb (55 kg) Grease Pump - 50:1
Division LED Family Code FAMPLD Country of Origin CN Unit of Measure EA Height 9.6 IN | 24.384 CM Length 39.6 IN | 100.584 CM Width 7.2 IN | 18.288 CM Volume 1.58 FT3 | 0.045 M3 Shipping Weight 20 LBS | 9.072 KG HTS Code (CA) 8413199090 HTS Code (US) 8413190000 Technical Specifications Air Inlet Size (in) 1/4 Air Inlet Size (mm) 6.35 Fluid Outlet Size (mm) 6.35 Maximum Air Inlet Pressure (bar) 10.34 Maximum Air Inlet Pressure (kPa) 1034 Maximum Air Inlet Pressure (psi) 150 Maximum Working Pressure (bar) 517 Maximum Working Pressure (kPa) 51700 Maximum Working Pressure (psi) 7500 Model LD Weight (kg) 0.6810 Maximum Working Pressure (MPa) 51.7
