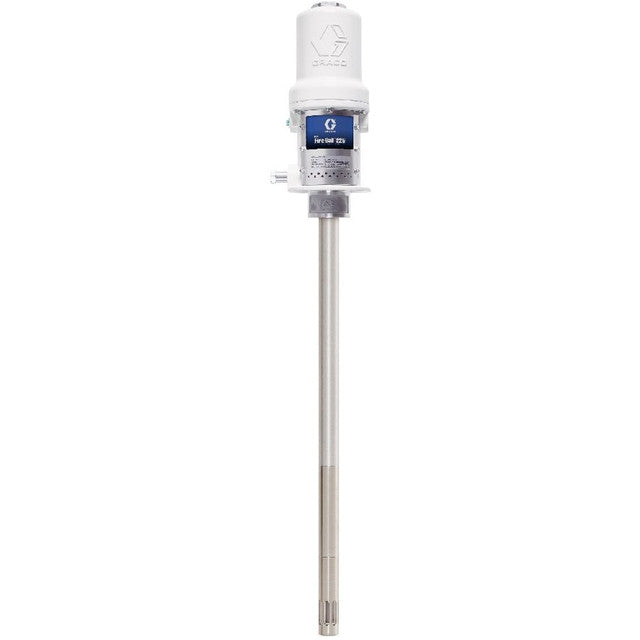

Graco 246780 50:1 120lb Grease Pump Only

Graco 246780 50:1 120lb Grease Pump Only

$1,330.00 USD
$1,450.00 USD $1,330.00 USD
Sale Sold out

Special Order 3-5 Days for Drop Ship
View Product Information View full details

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.

  • Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Division    LED
Family Code    FAMFIR
Country of Origin    US
Unit of Measure    EA
Height    9.5 IN  |  24.130 CM
Length    41 IN  |  104.140 CM
Width    9.5 IN  |  24.130 CM
Volume    2.141 FT3  |  0.061 M3
Shipping Weight    20.5 LBS  |  9.299 KG
HTS Code (CA)    8413199090
HTS Code (US)    8413190000
Technical Specifications
Air Inlet Size (in)    3/8
Air Inlet Size (mm)    9.525
Air Inlet Thread Gender    Female
Air Motor Effective Diameter (in)    2.25
Fluid Inlet Type    Slotted
Fluid Outlet Size (mm)    6.35
Fluid Outlet Thread Gender    Female
For Use With    Grease
Maximum Air Inlet Pressure (bar)    9.65
Maximum Air Inlet Pressure (kPa)    965
Maximum Air Inlet Pressure (psi)    140
Maximum Continuous Cycle Rate (CPM)    60
Maximum Intermittent Cycle Rate (CPM)    100
Maximum Working Pressure (bar)    580
Maximum Working Pressure (kPa)    58000
Maximum Working Pressure (psi)    8400
Model    Mini Fire-Ball
Series    225
Sound Pressure Level (dB(A))    77.8
Weight (kg)    0.6810
Maximum Working Pressure (MPa)    58
