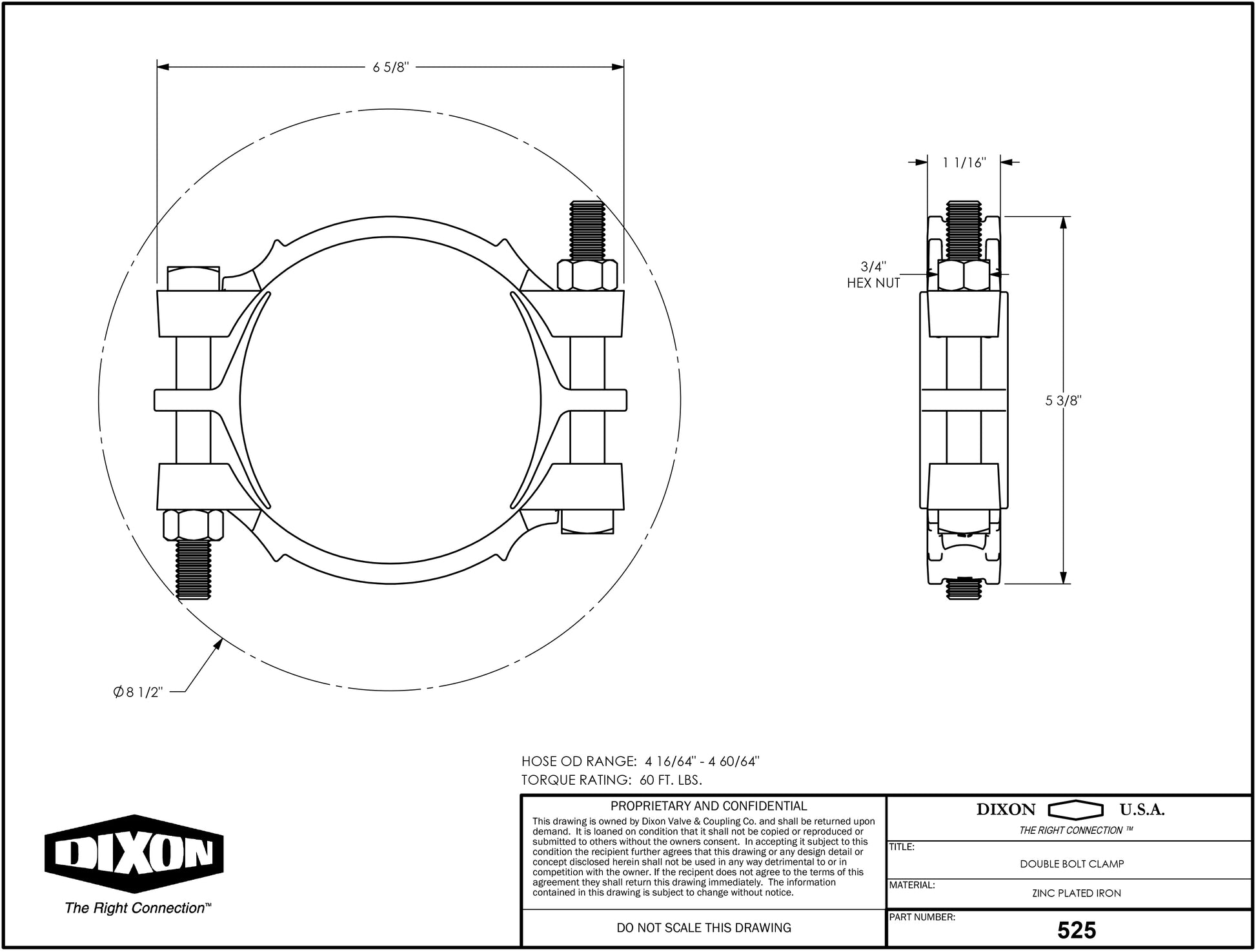

Dixon 525 2-Bolt Clamp 4-1/4" - 4-15/16"

• Inner surface has dual gripping ridges
• Bolt lugs are reinforced to prevent bending out of alignment
• The use of lubricant on bolts will adversely effect clamp performance.
• Consult Dixon when using double bolt clamps on helical wire hose.
• Measure hose OD accurately before ordering clamps
• Torque values for clamps are based on dry bolts.

HOSE OD RANGE: 4 16/64" - 4 60/64"
TORQUE RATING: 60 ft. lbs. [81 Nm]
