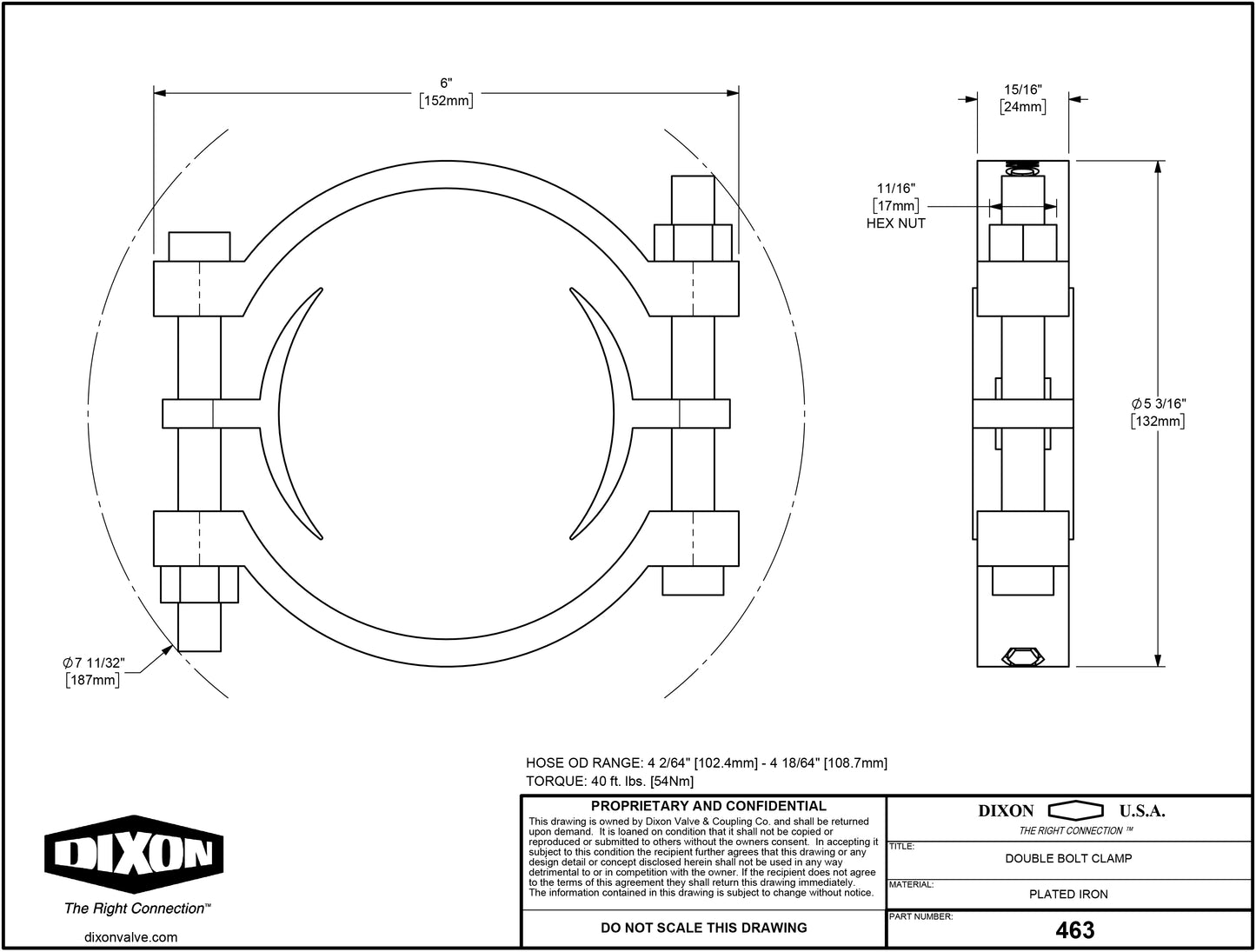

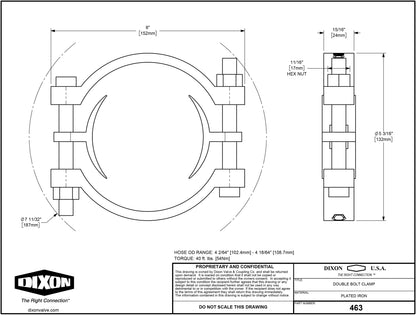

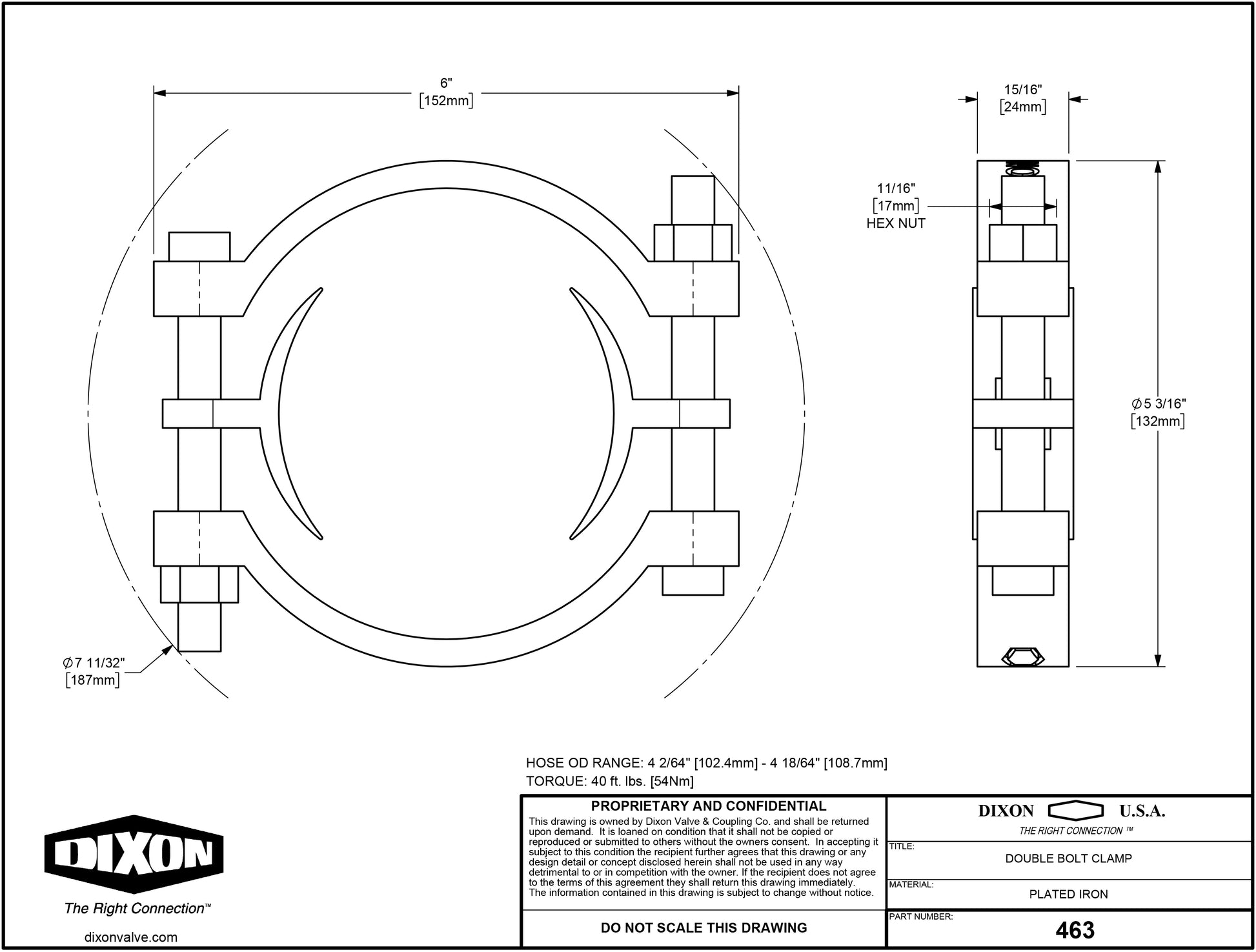

Dixon 463 2-Bolt Clamp 4-2/64" - 4-18/64"

• Inner surface has dual gripping ridges
• Bolt lugs are reinforced to prevent bending out of alignment
• The use of lubricant on bolts will adversely effect clamp performance.
• Consult Dixon when using double bolt clamps on helical wire hose.
• Measure hose OD accurately before ordering clamps
• Torque values for clamps are based on dry bolts.

HOSE OD RANGE: 4 2/64" [102.4mm] - 4 18/64" [108.7mm]
TORQUE RATING: 60 ft. lbs. [81 Nm]

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
