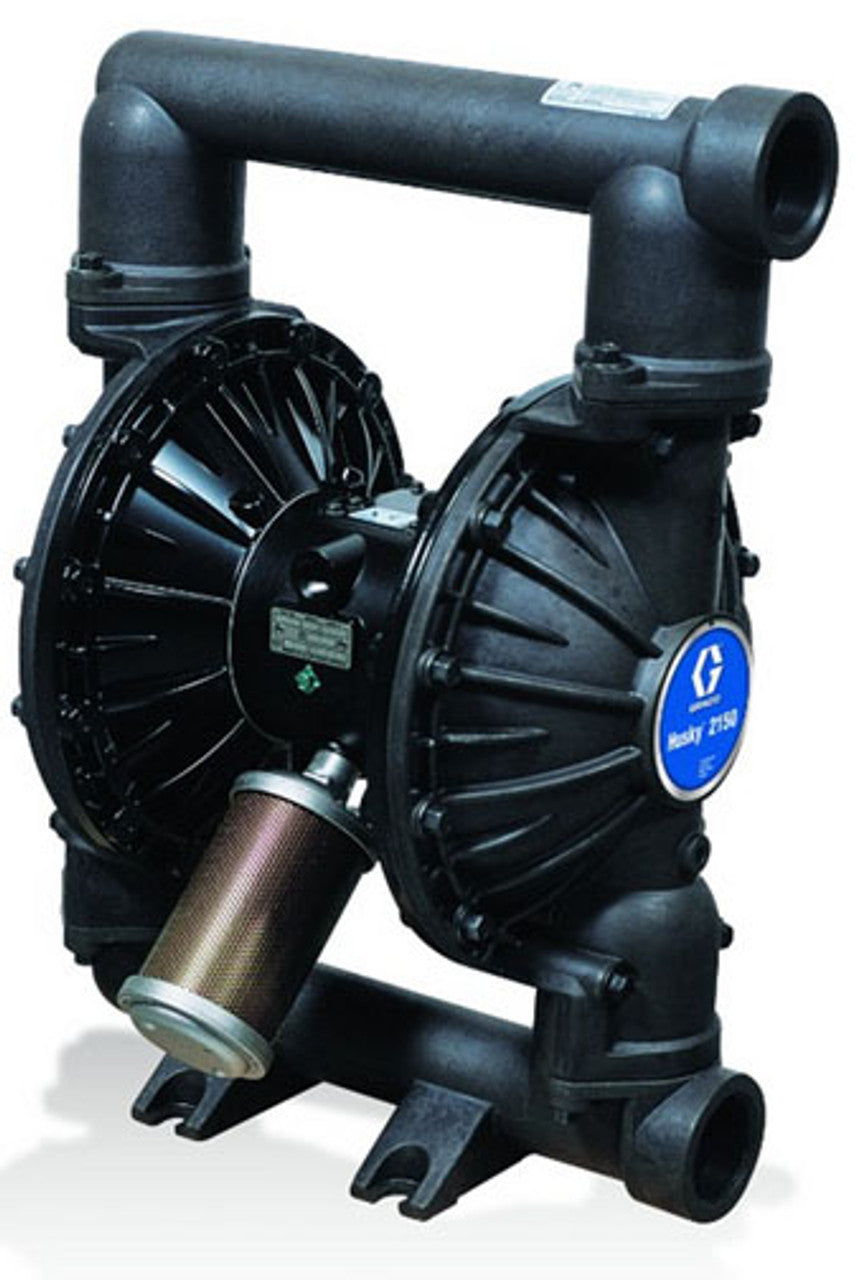

Graco DF3525 2" Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Expanded material offering to handle endless applications
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• 2 in. (51 mm) ANSI end-porting
• Fluid flow up to 150 gpm (568 lpm)
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Epoxy-coated air section for tough environmental conditions

Division    PRO
Family Code    FAMAOD
Country of Origin    US
Unit of Measure    EA
Height    25.2 IN  |  64.008 CM
Length    19.2 IN  |  48.768 CM
Width    15.6 IN  |  39.624 CM
Volume    4.368 FT3  |  0.124 M3
Shipping Weight    59 LBS  |  26.762 KG
HTS Code (US)    8413500050
HTS Code (CA)    8413500020
Technical Specifications
Air Inlet Size (in)    1/2
Air Inlet Thread Gender    Female
Fluid Inlet Size (cm)    5.08
Fluid Inlet Size (in)    2
Fluid Inlet Size (mm)    50.8
Fluid Inlet Thread Gender    Female
Fluid Outlet Size (cm)    5.08
Fluid Outlet Size (mm)    50.8
Fluid Outlet Thread Gender    Female
Maximum Air Consumption (SCFM)    175
Maximum Air Pressure (bar)    8.27
Maximum Air Pressure (kPa)    827
Maximum Air Pressure (psi)    120
Maximum Cycle Rate (CPM)    145
Maximum Flow Rate (L/min)    568
Maximum Fluid Pressure (bar)    8.27
Maximum Fluid Pressure (kPa)    827
Maximum Fluid Pressure (psi)    120
Maximum Operating Temperature (°C)    66
Maximum Operating Temperature (°F)    150
Maximum Solid Size (cm)    0.635
Maximum Solid Size (in)    0.25
Maximum Solid Size (mm)    6.35
Model    Husky
Series    2150
Maximum Fluid Pressure (MPa)    0.827
Maximum Air Pressure (MPa)    0.827
diaphragm_compatible_material    TPE
