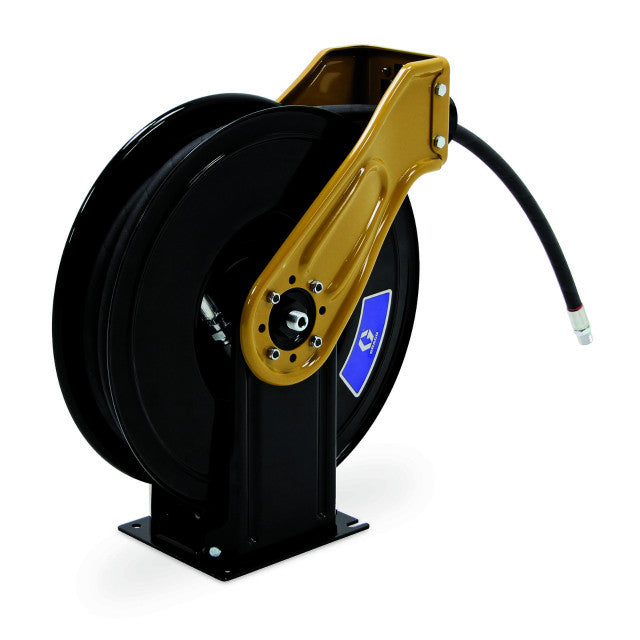

Graco XDL65F XDX™ 20, Air/Water/Antifreeze/WWS, 1/2 in Inlet, 1/2 in X 50 ft Hose, NPT, Truck/Bench Mount, Yellow

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Durable Finish - Baked-on enamel finish protects reel from corrosion
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

Division    LED
Family Code    FAMSDR
Country of Origin    US
Unit of Measure    EA
Height    26.1 IN  |  66.294 CM
Length    24.5 IN  |  62.230 CM
Width    9.5 IN  |  24.130 CM
Volume    3.51 FT3  |  0.099 M3
Shipping Weight    65 LBS  |  29.484 KG
HTS Code (CA)    8479899090
HTS Code (US)    8479899560
Technical Specifications
Hose Inside Diameter (mm)    12.7
Inlet Size (in)    1/2
Inlet Size (mm)    12.7
Maximum Temperature (°C)    87
Maximum Temperature (°F)    190
Maximum Working Pressure (psi)    300
Minimum Temperature (°C)    -28
Minimum Temperature (°F)    -20
Outlet Size (in)    1/2
Outlet Size (mm)    12.7
Overall Height (in)    25.2
Overall Height (mm)    640
Overall Length (in)    23.4
Overall Length (mm)    594
Overall Width (in)    7.5
Overall Width (mm)    191
Series    20
Frame Type    Dual Pedestal
Reel Thread Type    NPT
Inlet Thread Gender    Male
Outlet Thread Gender    Male
Recommended Fluid Type    Air, Water, Antifreeze, WWS
Hose Reel Type    Reel with Hose
includes_hose    Yes
