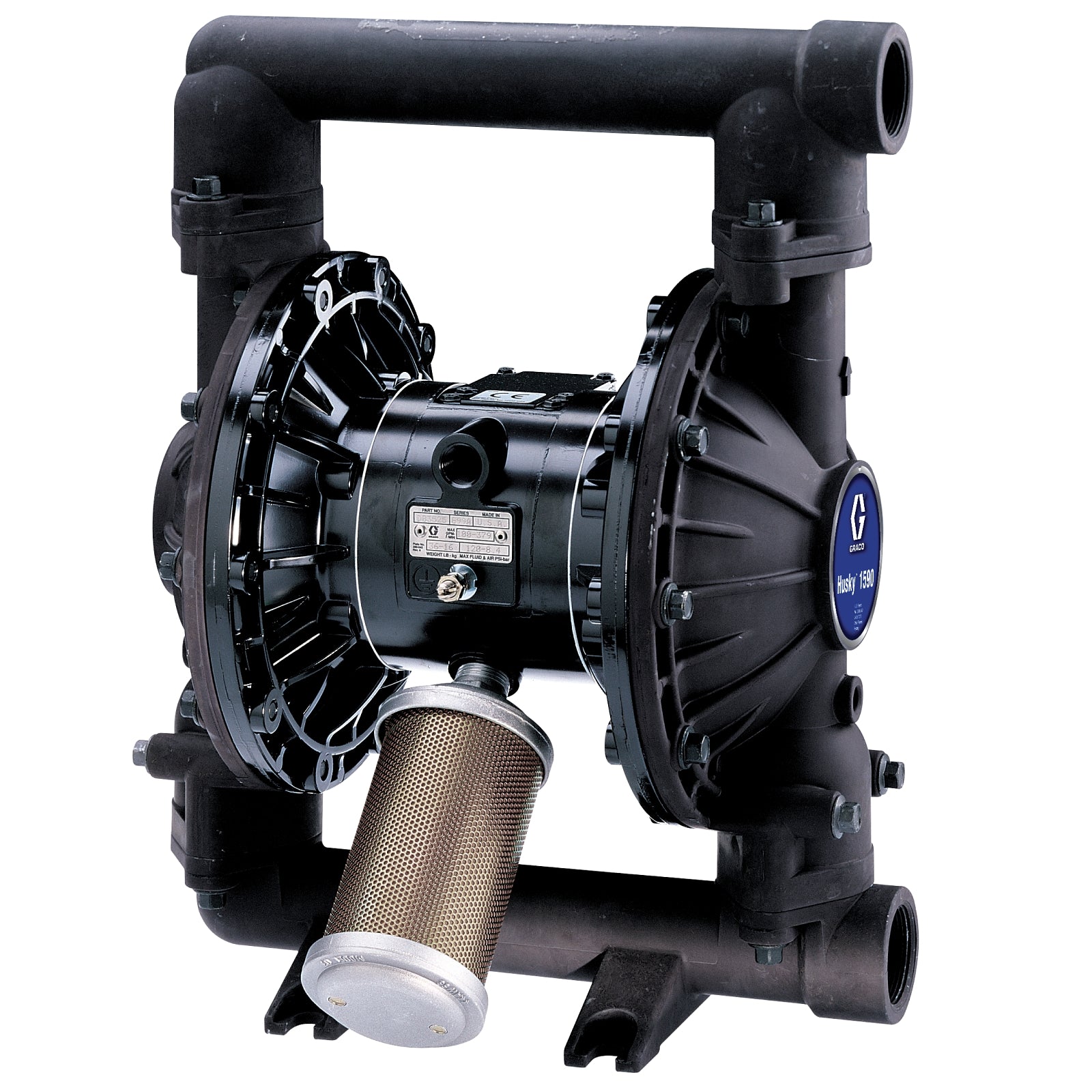

Graco DB3525 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm

• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
• Expanded material offering to handle endless applications
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• Offered in ATEX configuration.
• 1-1/2 in. (38.1 mm) ANSI end-porting
• High flow - 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Available in polypropylene, aluminum and stainless steel
• Epoxy-coated air section for tough environmental conditions

Division    PRO
Family Code    FAMAOD
Country of Origin    US
Unit of Measure    EA
Height    22.8 IN  |  57.912 CM
Length    18 IN  |  45.720 CM
Width    12 IN  |  30.480 CM
Volume    2.85 FT3  |  0.081 M3
Shipping Weight    42 LBS  |  19.051 KG
HTS Code (US)    8413500050
HTS Code (CA)    8413500090
Technical Specifications
Air Exhaust Port Size (in)    3/4
Air Exhaust Port Thread Gender    Female
Air Inlet Size (in)    1/2
Air Inlet Thread Gender    Female
Fluid Inlet Size (cm)    3.81
Fluid Inlet Size (in)    1-1/2
Fluid Inlet Size (mm)    38.1
Fluid Inlet Thread Gender    Female
Fluid Outlet Size (cm)    3.81
Fluid Outlet Size (mm)    38.1
Fluid Outlet Thread Gender    Female
Maximum Air Consumption (SCFM)    125
Maximum Air Pressure (bar)    8
Maximum Air Pressure (kPa)    800
Maximum Air Pressure (psi)    120
Maximum Cycle Rate (CPM)    200
Maximum Flow Rate (L/min)    379
Maximum Fluid Pressure (bar)    8
Maximum Fluid Pressure (kPa)    800
Maximum Fluid Pressure (psi)    120
Maximum Operating Temperature (°C)    66
Maximum Operating Temperature (°F)    150
Maximum Solid Size (cm)    0.4763
Maximum Solid Size (in)    0.1875
Maximum Solid Size (mm)    4.763
Model    Husky
Overall Height (in)    19.6
Series    1590
Maximum Fluid Pressure (MPa)    0.8
Maximum Air Pressure (MPa)    0.8
diaphragm_compatible_material    TPE
