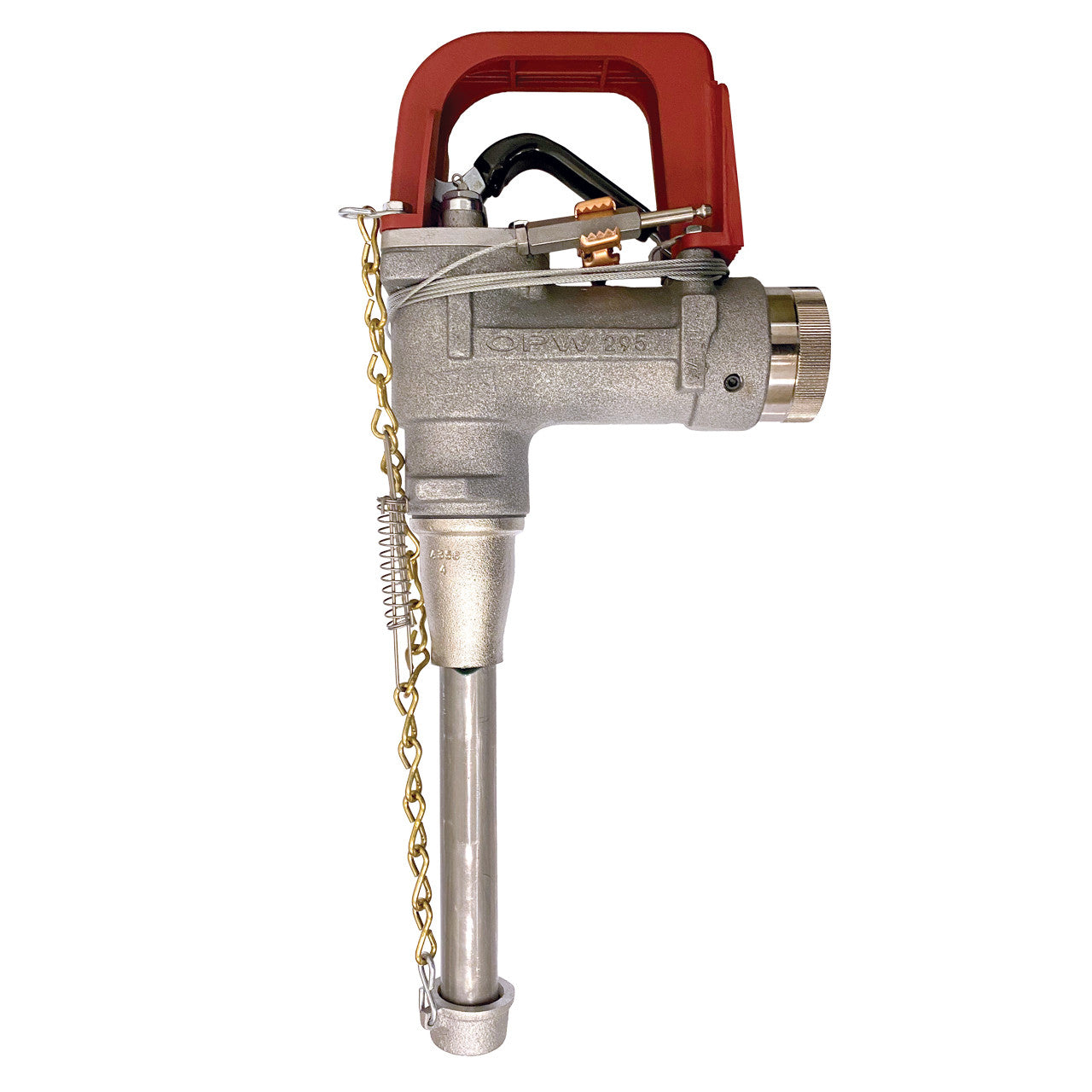

OPW FC 295SA-0137 1-1/2" Aircraft Nozzle w/ Swivel

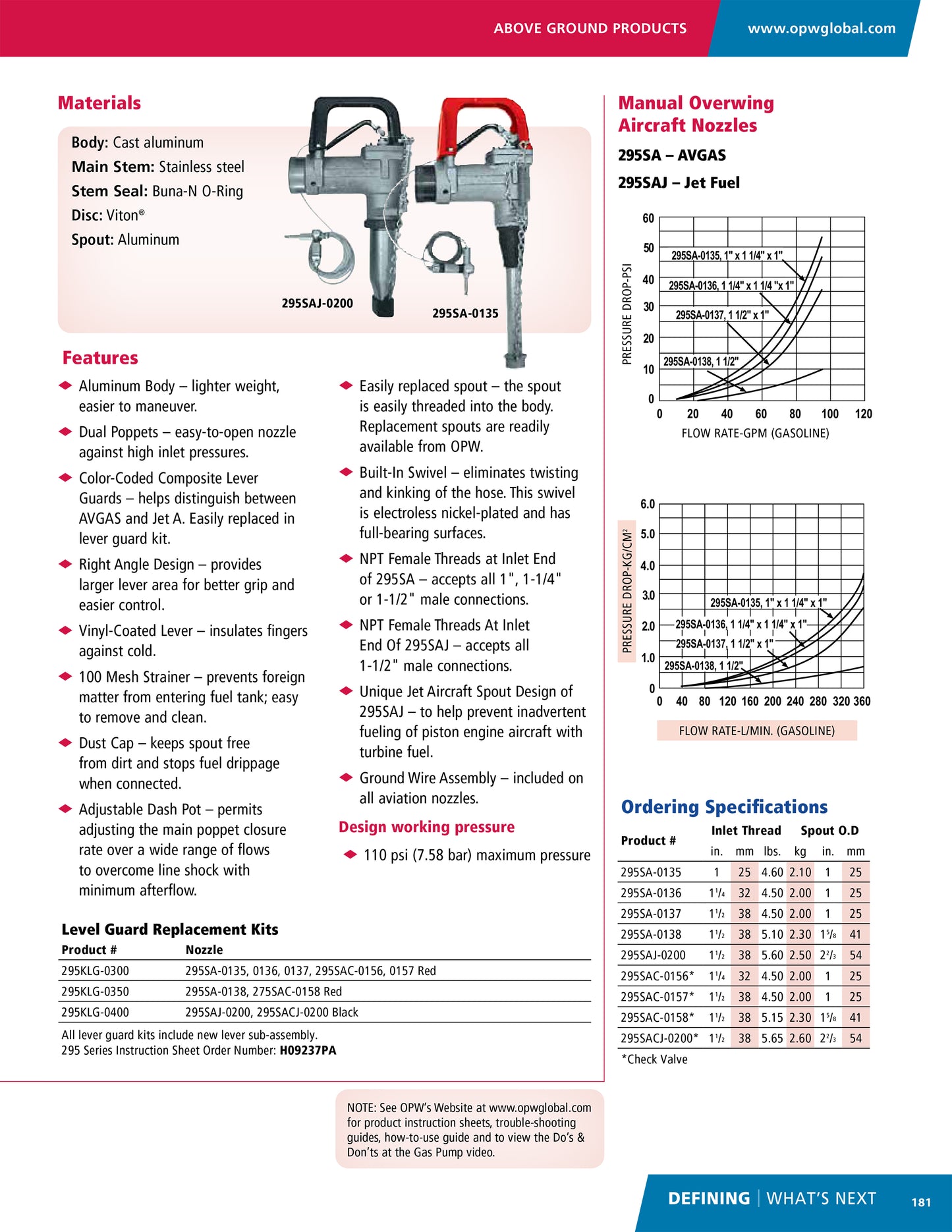

Manual Overwing Aircraft Nozzles Manual

• Aluminum Body - lighter weight, easier to maneuver.
• Dual Poppets - easy-to-open nozzle against high inlet pressures.
• Color-Coded Composite Lever Guards - helps distinguish between AVGAS and Jet A. Easily replaced in lever guard kit.
• Right Angle Design - provides larger lever area for better grip and easier control.
• Vinyl-Coated Lever - insulates fingers against cold.
• 100 Mesh Strainer - prevents foreign matter from entering fuel tank; easy to remove and clean.
• Dust Cap - keeps spout free from dirt and stops fuel drippage when connected.
• Adjustable Dash Pot - permits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum afterflow.
• Easily Replaced Spout - the spout is easily threaded into the body. Replacement spouts are readily available from OPW.
• Built-In Swivel - eliminates twisting and kinking of the hose. This swivel is electroless nickel-plated and has full-bearing surfaces.
• NPT Female Threads at Inlet End of 295SA - accepts all 1", 1-1/4" or 1-1/2" male connections.
• Ground Wire Assembly - included on all aviation nozzles.
